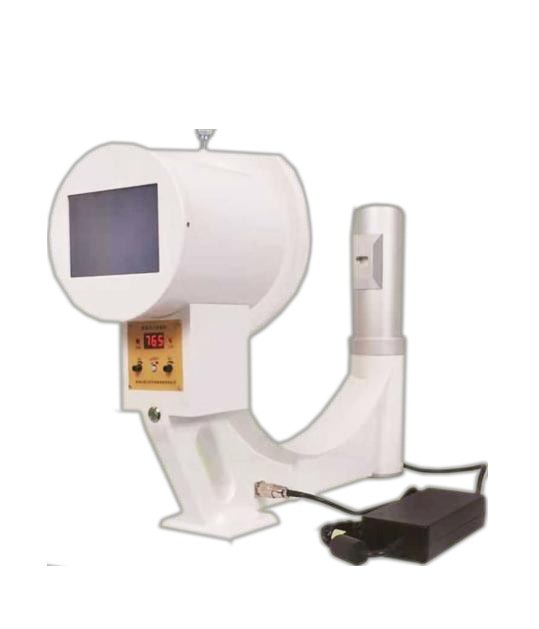

Handheld Fluoroscopy Machine (100 × 75 mm)
100 × 75 mm effective field · 45–90 kV · ≤4 kg · 54 × 37 × 15 cm
A mid-field configuration: 100 × 75 mm effective view with 45–90 kV continuous adjustment — a good balance between coverage and portability. Still only 4 kg and 54 × 37 × 15 cm, with one-button operation and image freeze.
100 × 75 mm field45 – 90 kV continuous≤3 lp/mm resolution≤4 kg · 54 × 37 × 15 cm
Real Imaging
Product Views & Fluoroscopy Effect
Specifications
Technical Parameters
| Effective field of view | ≤ 100 × 75 mm |
|---|---|
| Object thickness | ≤ 300 mm |
| X-ray tube voltage | 45 – 90 kV (continuous adjustment) |
| Voltage regulation accuracy | ≤ ±10 % |
| X-ray tube current | 0.25 – 0.5 mA (continuous adjustment) |
| Focus-to-reference-axis deviation | ± 1 mm |
| Image resolution | ≤ 3 lp/mm |
| Working frequency | 20 kHz |
| X-ray leakage rate | ≤ 0.33 mGy/h |
| Input power | AC 220 V ± 10 % |
| Host size | 54 × 37 × 15 cm |
| Host net weight | ≤ 4 kg |
| Package size (est.) | 60 × 45 × 25 cm |
| Gross weight (est.) | 14 kg |
- C-shaped design made of ABS engineering plastic — light, firm and easy to carry
- No darkroom needed — direct fluoroscopy with instant viewing, indoors and outdoors
- Low radiation dose, simple and safe operation
- LCD imaging — high resolution, noise-free, high-brightness black-and-white images
- One-button power on/off with quick image-freeze function
- 20 kHz working frequency, rich optional functions for different scenarios
- 10-year whole-machine design life, military-grade durability
- Includes China Medical Device Registration Certificate
Optional functions: Computer acquisition software, foot switch, remote control switch, imported camera, freeze-frame system, customized battery, all-functions-external version, lead box.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope
Where It Works
- Orthopedics, hand & foot microsurgery, TCM manual reduction, closed pinning — 医院骨科、手足显微外科、中医整骨手法复位、闭合穿针
- Field work, earthquake relief and on-site casualty treatment — 野外作业、地震救援等现场伤员处理
- Animal inspection in zoos, farms and pet hospitals — 动物园、饲养场、宠物医院等的动物检查
- Experiments, scientific research, teaching and engineering — 实验、科研、教学、工程等广泛应用
- Foreign-body detection in rare herbal medicine — 名贵中草药的异物检测
- Industrial nondestructive testing (NDT) — 工业产品无损检测
- Security screening for public security and anti-terrorism — 治安、反恐的安检
Explore the Line
Other Fluoroscopy Configurations

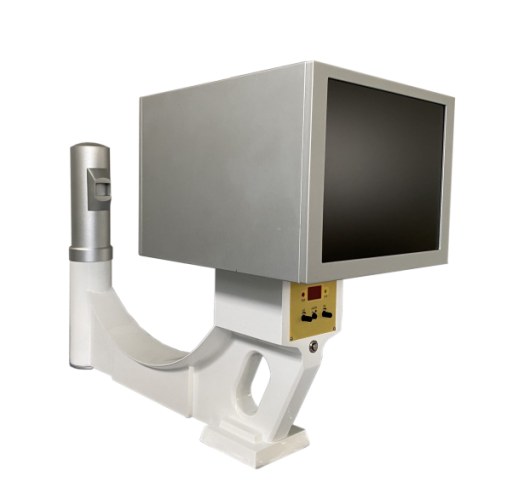

Large Screen · 220 × 160 mm45–90 kV · integrated display · ≤9 kg · 63 × 53 × 34 cm

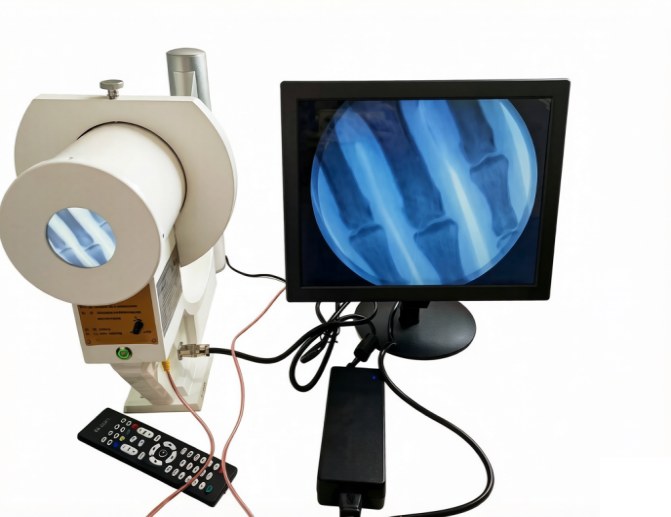

Compact · φ50 mm · LCD45–70 kV · LCD display included · ≤4 kg · 51 × 36 × 12 cm
3.5″ Screen Output45–70 kV · ≥200 lm · 200 W · <5.5 kg · 15 kg gross

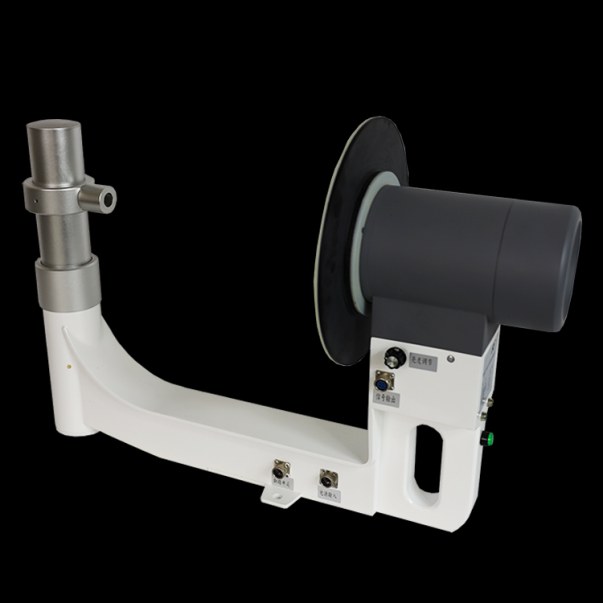

Standard · φ50 mm45–70 kV · foot-switch operation · <4 kg · 51 × 36 × 12 cmNeed pricing or a sample unit?
