3.5″ Screen Handheld Fluoroscopy Machine

3.5″ output screen (≥200 lm) · 45–70 kV · ≥3 lp/mm · 200 W · <5.5 kg

The brochure flagship: a 3.5-inch output screen with ≥200 lm brightness for live fluoroscopy, 200 W low power consumption and a <5.5 kg body packed in an estimated 70 × 50 × 25 cm case. No darkroom required — aim, expose and read the image instantly at the bedside, in the barn or on the field.

3.5″ output screen45 – 70 kV continuous200 W low power<5.5 kg · 11.5 kg gross
Get a Quote in 24h
Real Imaging

Product Views & Fluoroscopy Effect

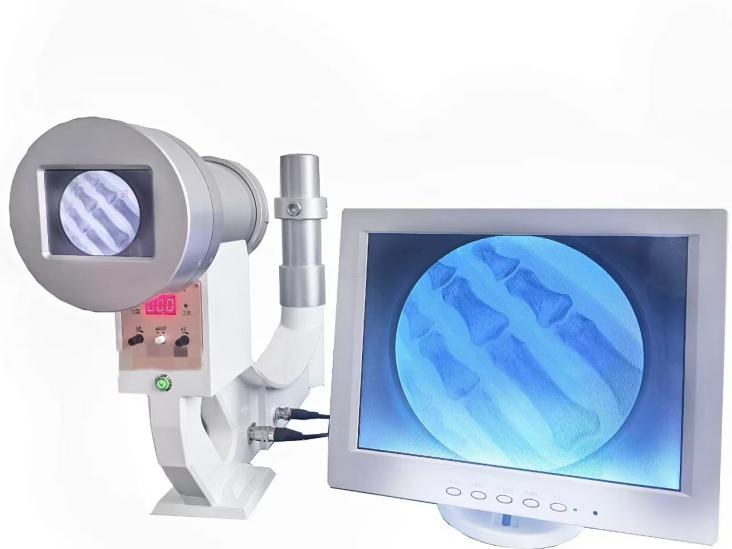

3.5&Prime; output screen unit with external monitor — live image on both
3.5″ output screen unit with external monitor — live image on both

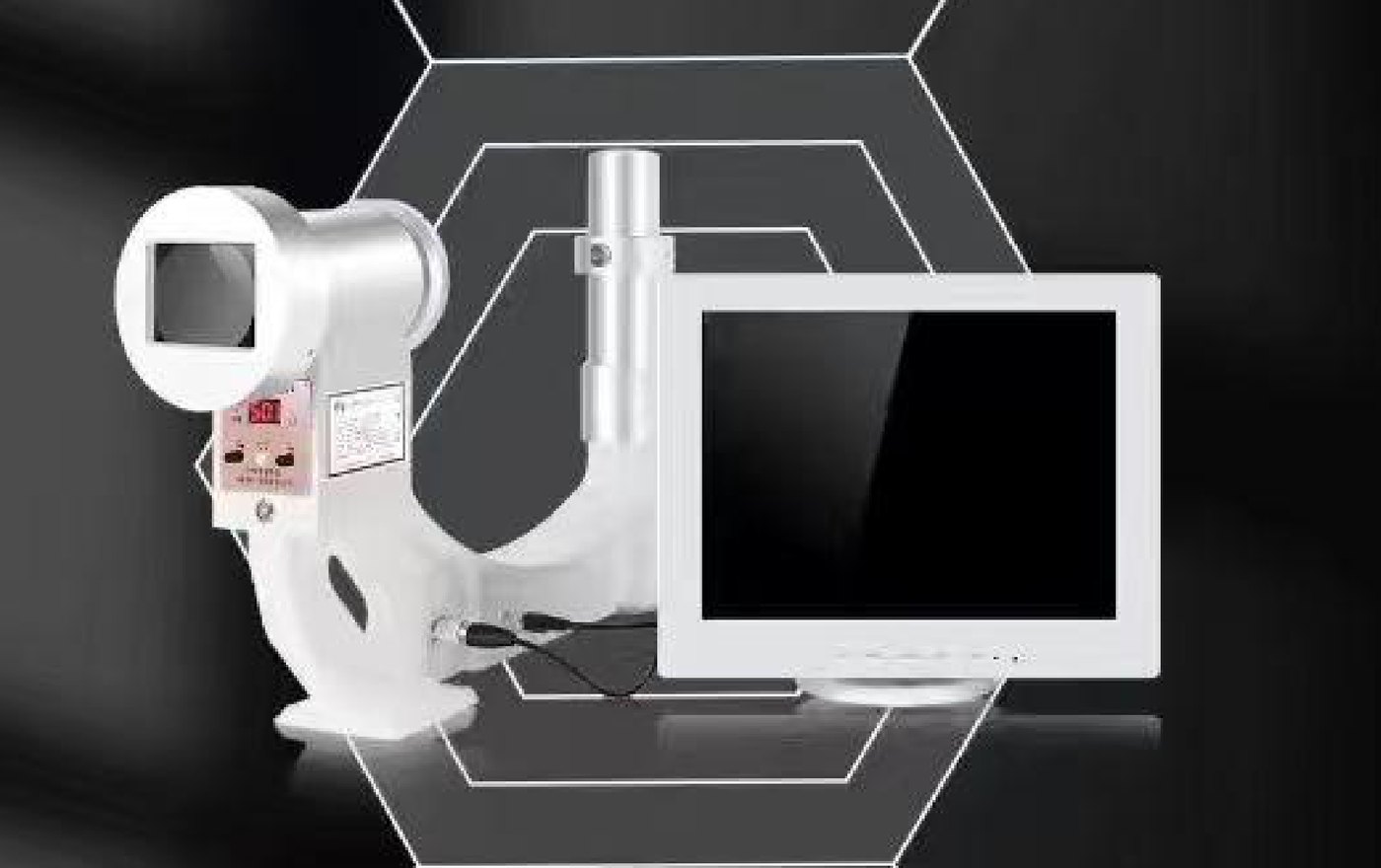

Handheld fluoroscopy machine, promotional view
Handheld fluoroscopy machine, promotional view
Live fluoroscopy image — patella (knee cap)
Live fluoroscopy image — patella (knee cap)
Live fluoroscopy image — finger phalanges
Live fluoroscopy image — finger phalanges
Specifications

Technical Parameters

Output image size≤ 3.5″
Output screen brightness≥ 200 lm
Object thickness≤ 300 mm
X-ray tube voltage45 – 70 kV (continuous adjustment)
Voltage regulation accuracy≤ ±10 %
X-ray tube current0.25 – 0.5 mA (continuous adjustment)
Current regulation accuracy≤ ±20 %
Focus-to-reference-axis deviation± 1 mm
Image resolution≥ 3 lp/mm
Working frequency20 kHz
X-ray leakage rate≤ 1 mGy/h
Power consumption200 W
Input powerAC 220 V · 50 Hz
Host net weight< 5.5 kg
Package size (est.)70 × 50 × 25 cm
Gross weight (est.)15 kg
  • C-shaped design made of ABS engineering plastic — light, firm and easy to carry
  • No darkroom needed — direct fluoroscopy with instant viewing, indoors and outdoors
  • Low radiation dose, simple and safe operation
  • LCD imaging — high resolution, noise-free, high-brightness black-and-white images
  • One-button power on/off with quick image-freeze function
  • 20 kHz working frequency, rich optional functions for different scenarios
  • 10-year whole-machine design life, military-grade durability
  • Includes China Medical Device Registration Certificate
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). The machine supports factory options — ask us for a configuration proposal for your market.
Application Scope

Where It Works

  • Orthopedics, hand & foot microsurgery, TCM manual reduction, closed pinning — 医院骨科、手足显微外科、中医整骨手法复位、闭合穿针
  • Field work, earthquake relief and on-site casualty treatment — 野外作业、地震救援等现场伤员处理
  • Animal inspection in zoos, farms and pet hospitals — 动物园、饲养场、宠物医院等的动物检查
  • Experiments, scientific research, teaching and engineering — 实验、科研、教学、工程等广泛应用
  • Foreign-body detection in rare herbal medicine — 名贵中草药的异物检测
  • Industrial nondestructive testing (NDT) — 工业产品无损检测
  • Security screening for public security and anti-terrorism — 治安、反恐的安检
