Portable Handheld X-Ray Machine

40–70 kV adjustable · 1–8 mA · 0.01–2.5 s in 56 steps · ≈500 shots per charge

The fully adjustable handheld of the family: tube voltage from 40 to 70 kV in 1 kV steps and 1–8 mA step-adjustable current, so exposure can be tuned per tooth type and patient age. DC high-frequency design — small, light and low-dose, widely used in oral implant surgery and daily clinical diagnosis.

40 – 70 kV, 1 kV step1 – 8 mA0.01 – 2.5 s, 56 steps≈500 shots per charge1.9 kg net

Get a Quote in 24h

NKK10C (70) · Real Photos

Shot in Our Own Factory

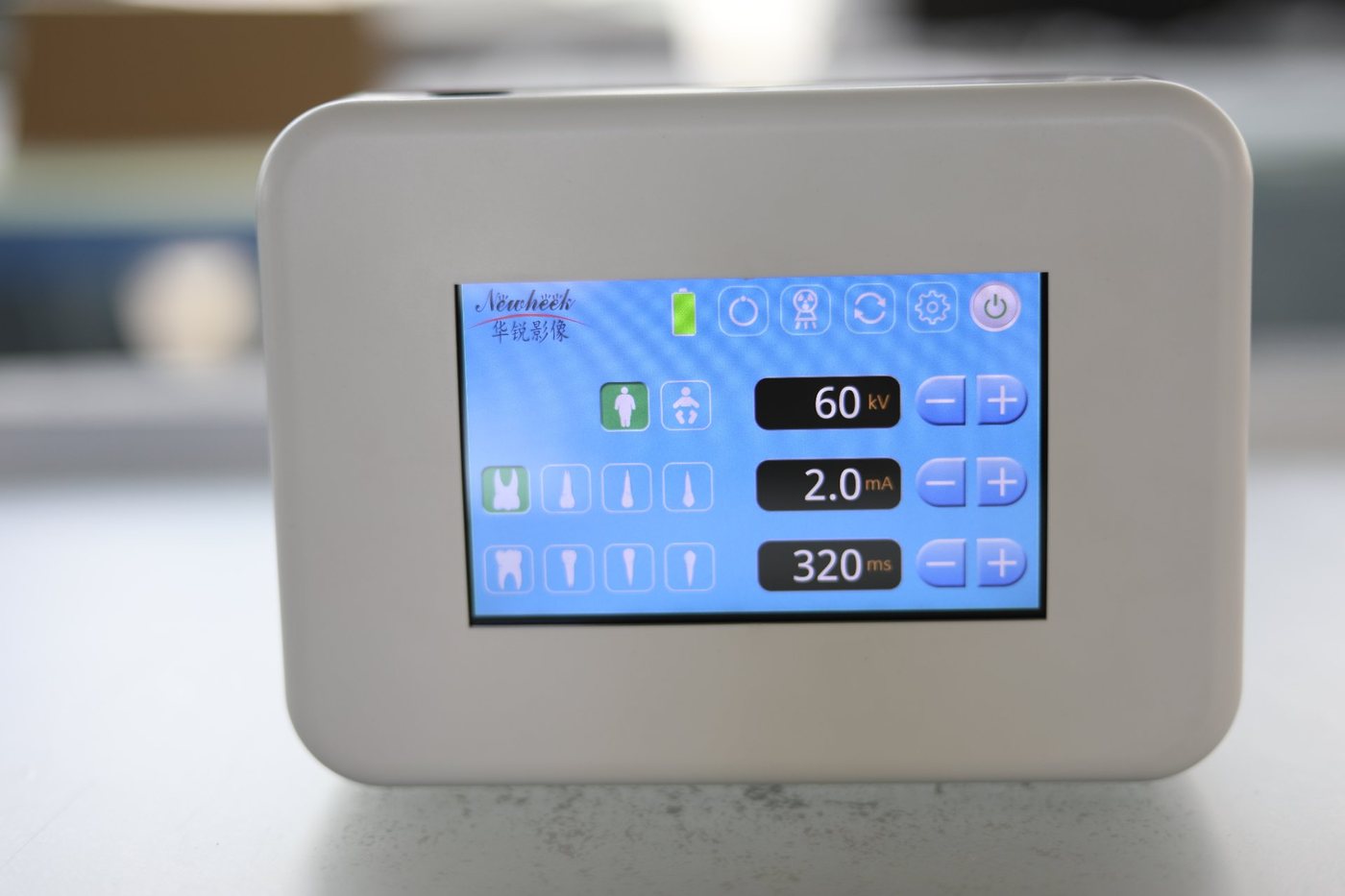

NKK10C touch screen set to 60 kV 2.0 mA 320 ms — Touch screen · adult/child & tooth-type presets

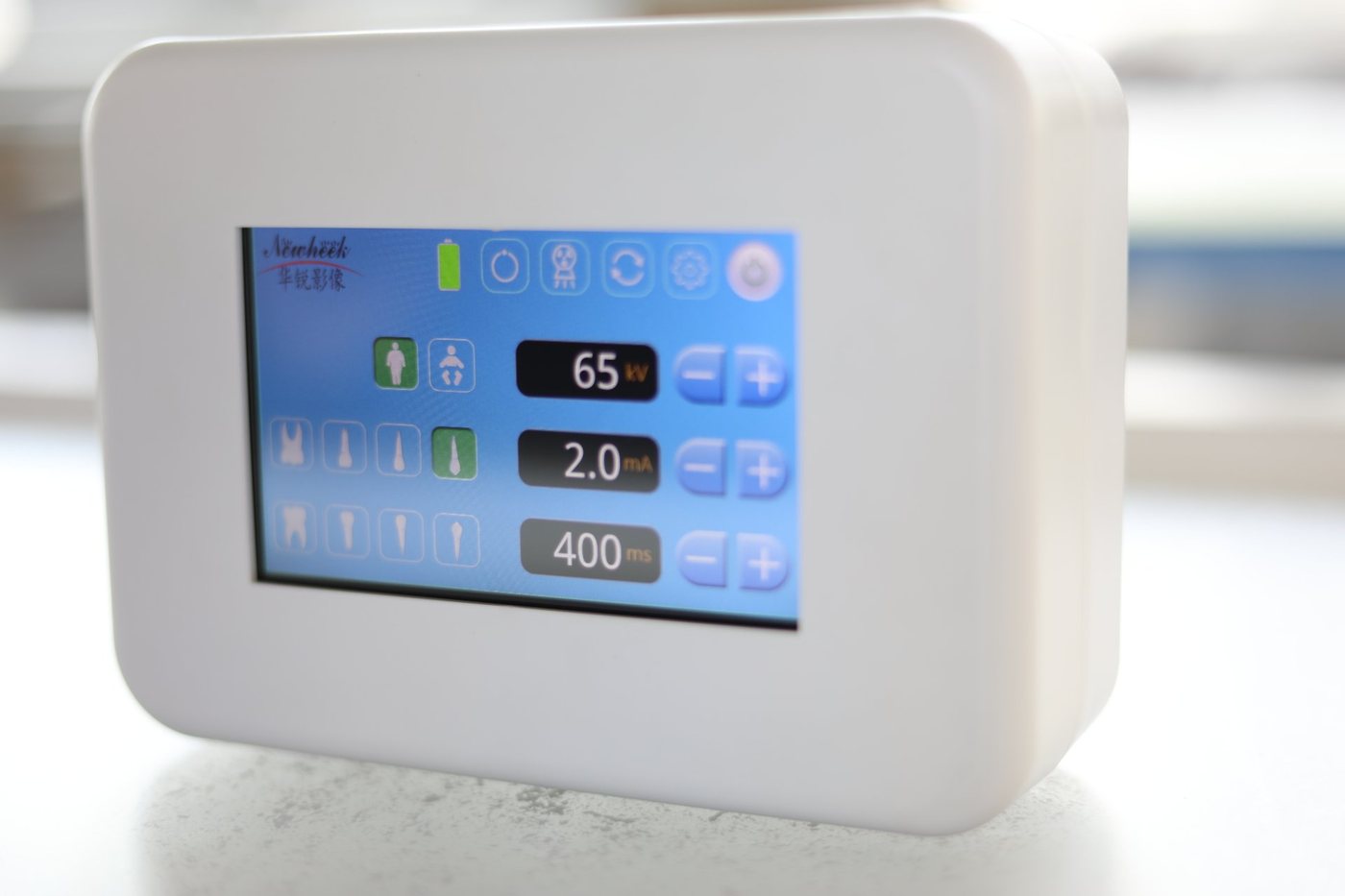

NKK10C exposure parameters 65 kV 400 ms — Parameter fine-tuning with ± keys

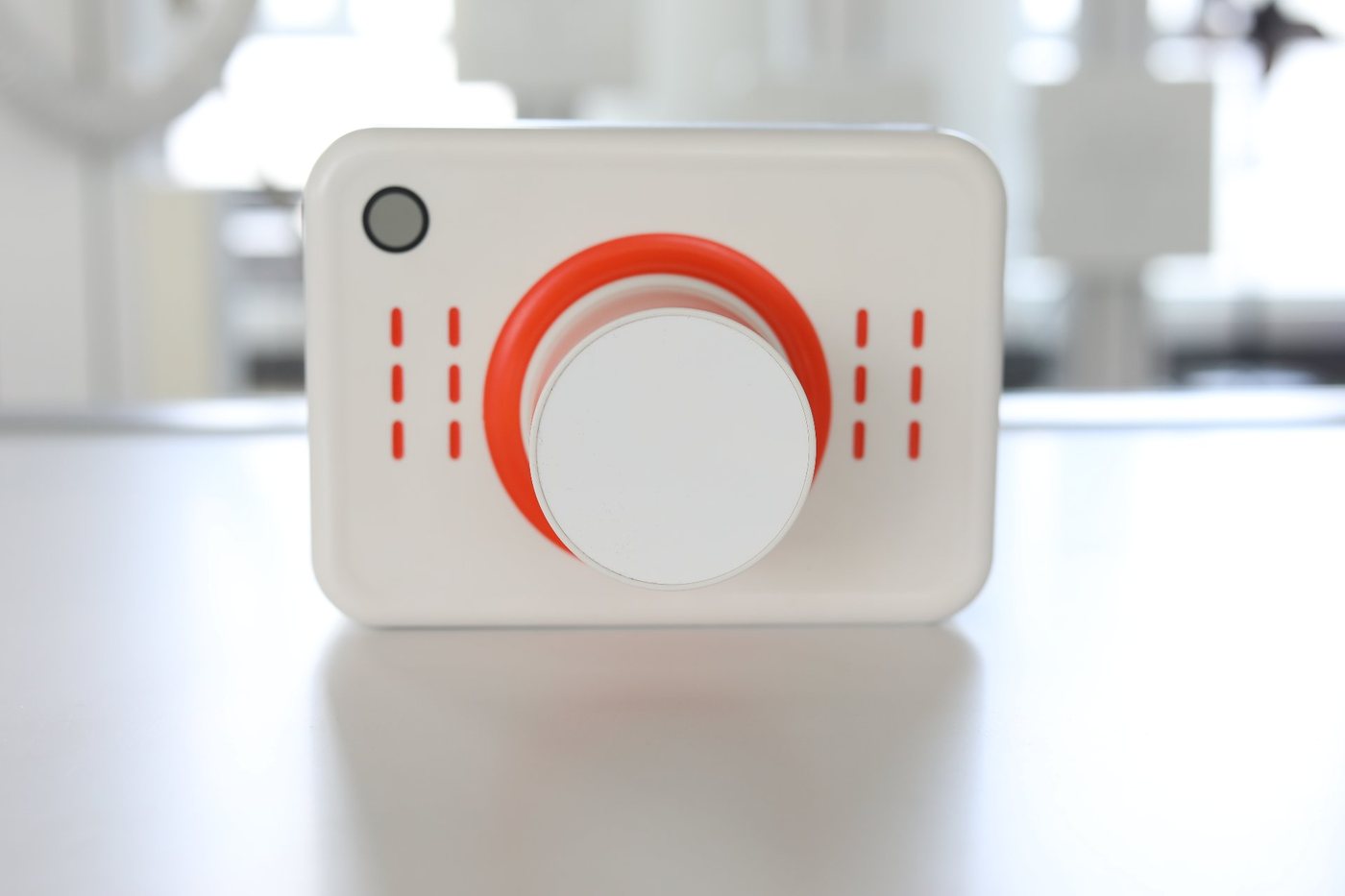

NKK10C handheld dental X-ray unit front view — Front view with positioner cone

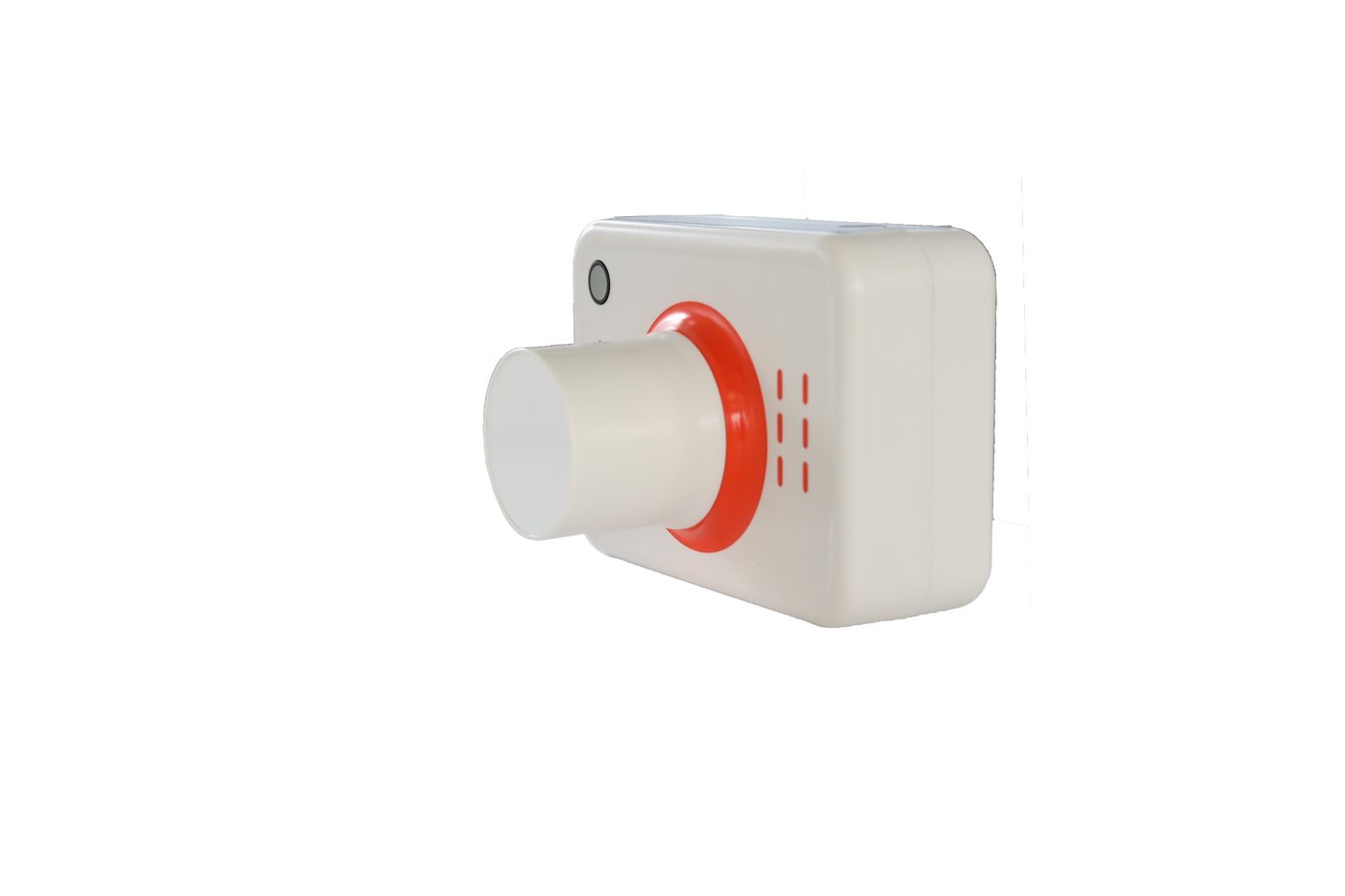

NKK10C side view — Side profile — 1.9 kg, one-hand operation

NKK10C cone and backscatter shield detail — 60 mm output field with backscatter shield

NKK10C complete kit powered on inside aluminium carrying case — Complete kit powered on, foam-cut case

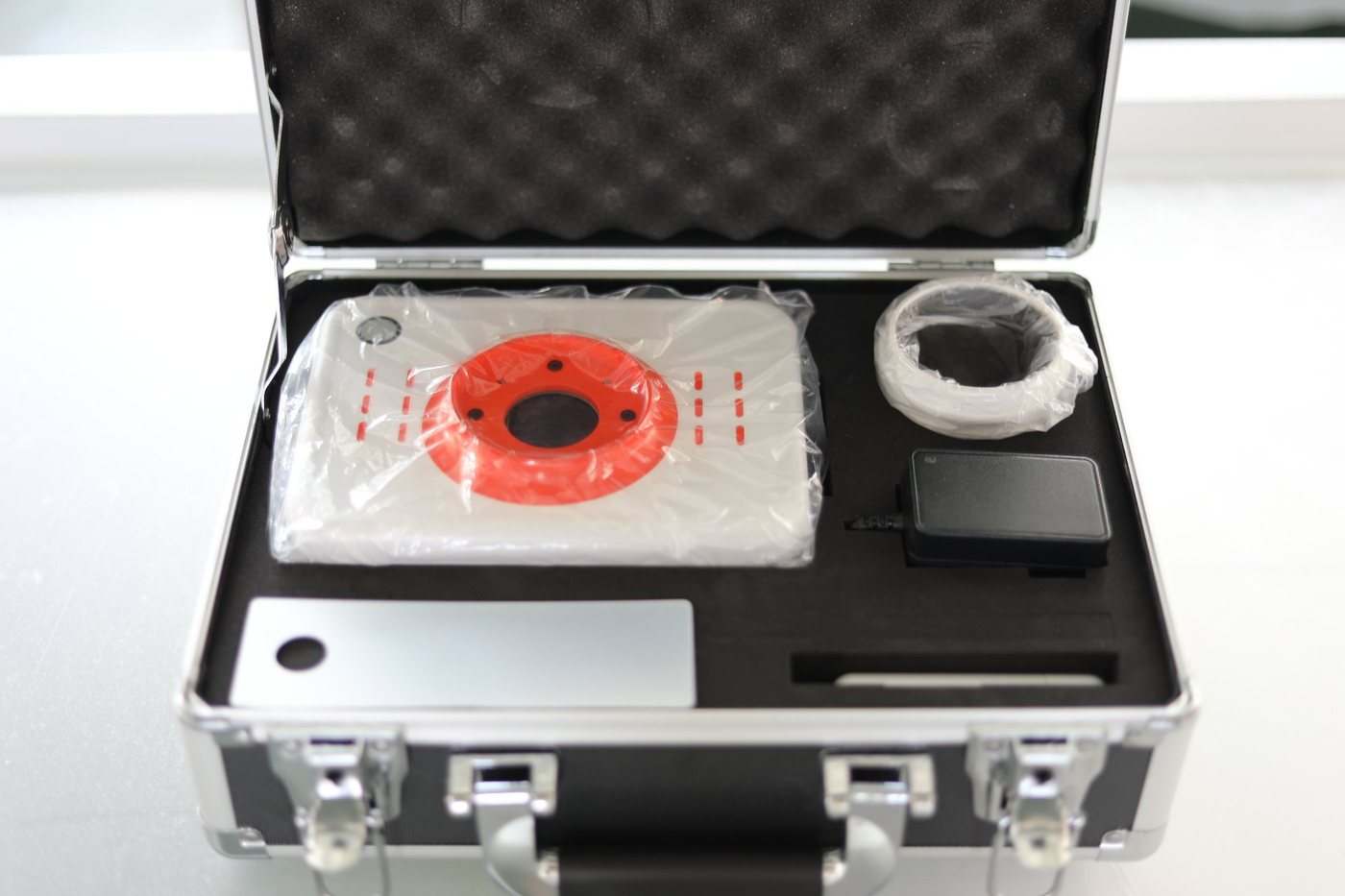

NKK10C kit with main unit cone charger and remote — Main unit, cone, charger & remote

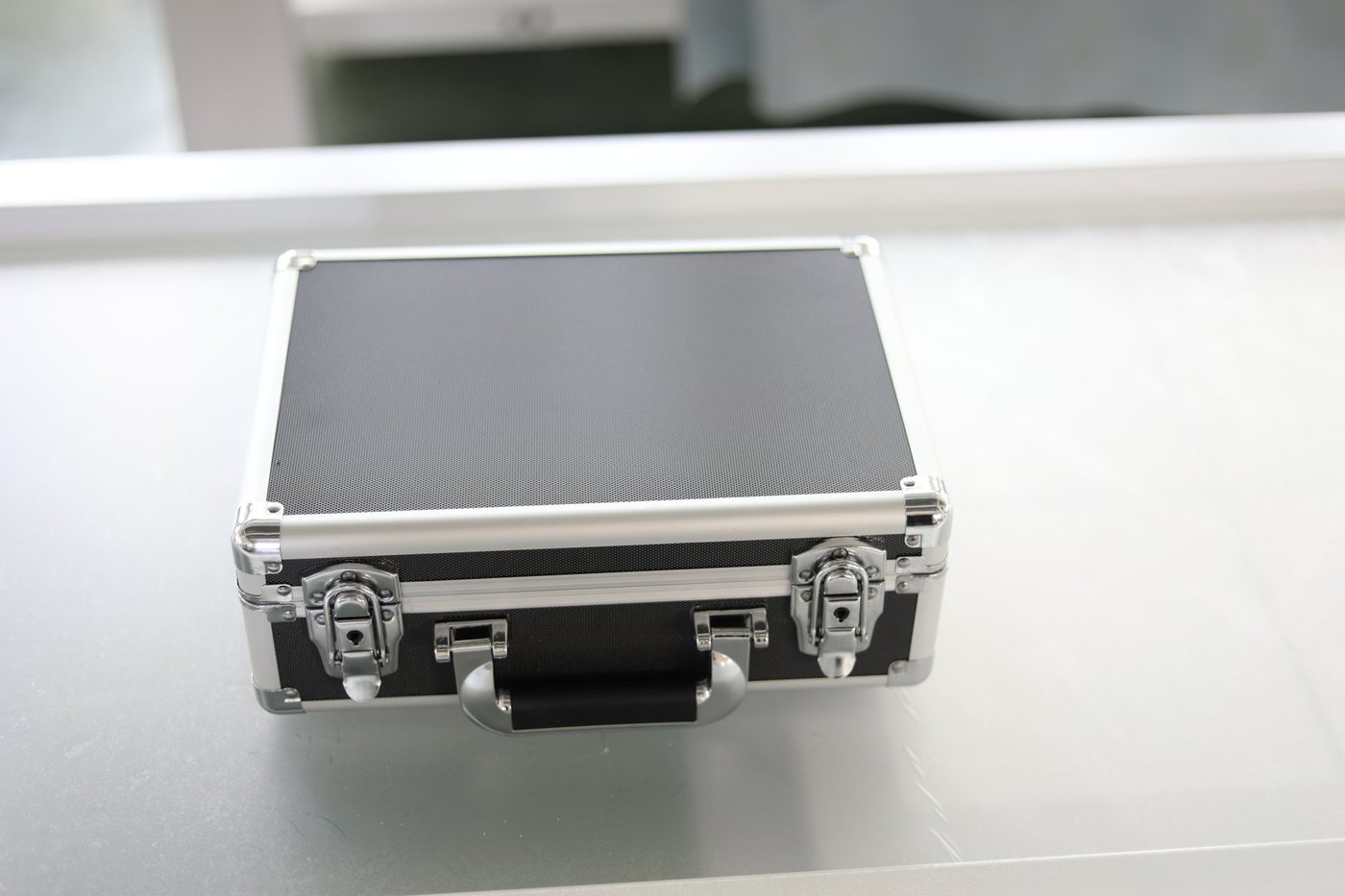

NKK10C closed aluminium carrying case — Rugged aluminium carrying case (closed)

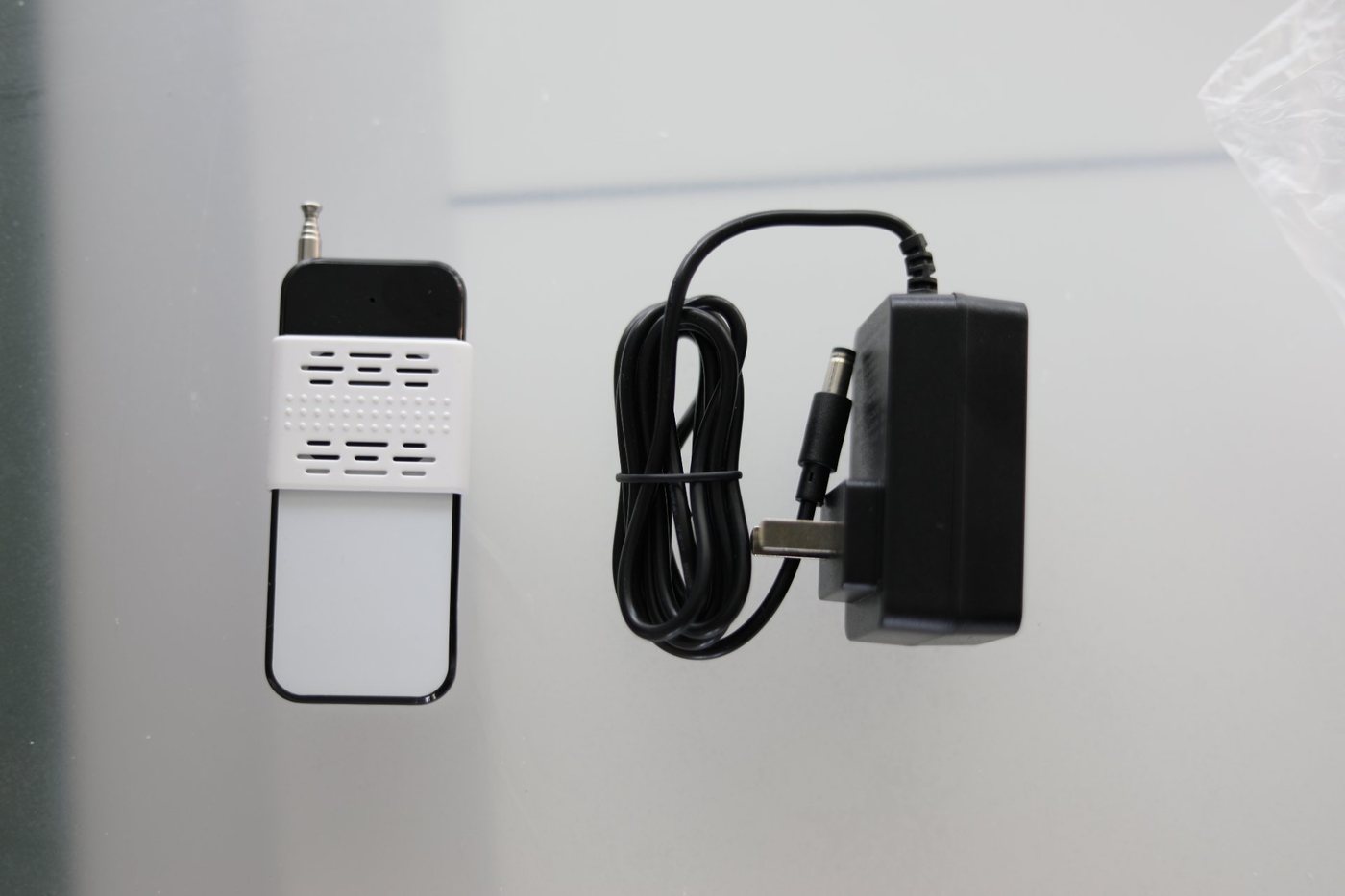

NKK10C wireless remote control and power adapter — Wireless remote + AC adapter (100–240 V)

Specifications

NKK10C (70) Technical Parameters

Tube voltage	40 – 70 kV (adjustable with 1 kV step)
Tube current	1 – 8 mA (step adjustable)
Exposure time	0.01 – 2.5 s (manually adjustable in 56 steps)
Focal spot	0.4 mm
Output radiation field	60 mm
Standard SSD	200 mm
Battery	Main battery 24 V DC · adapter 25.2 V DC · capacity 2.5 Ah
Anode heat capacity	4500 J
Power input / output	AC 100 – 240 V / DC 25.2 V
Operating temperature	10 – 30 ℃
Operating humidity	40 – 60 %RH
Net weight	1.9 kg
Packed weight / packing size	3.2 kg · 280 × 270 × 250 mm

Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.

Product Advantages

Why the NKK10C (70)

DC high-frequency portable intraoral X-ray unit — small size, light weight, low radiation dose
Manual operation buttons on the shell; all components centrally assembled on the main control board with insulated vacuum-sealed protection
Supports diagnosis of internal tooth tissue structure and root depth before treatment — widely used in oral implant surgery
Long-lasting battery: one full charge supports about 500 dental radiographs, with nearly 1000 complete charge–discharge cycles
Pairs with a digital intraoral X-ray imaging system to form a complete dental digital imaging system, replacing film processing

Explore the Line

Other Products in This Line

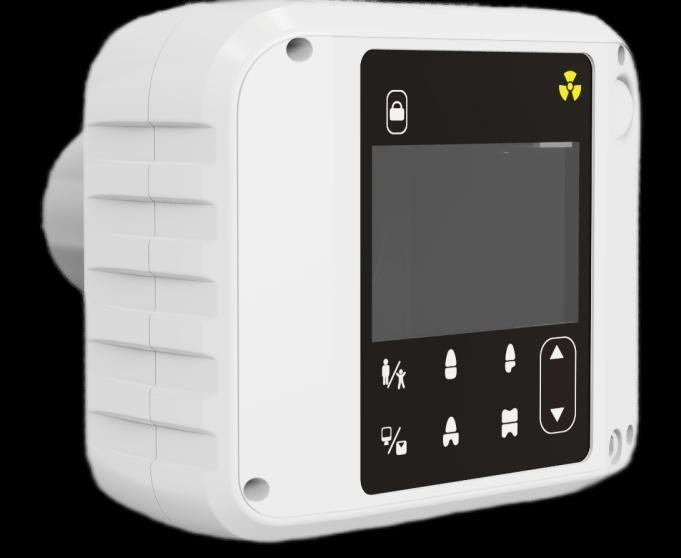

NKK10C (60)Portable · 60 kV fixed

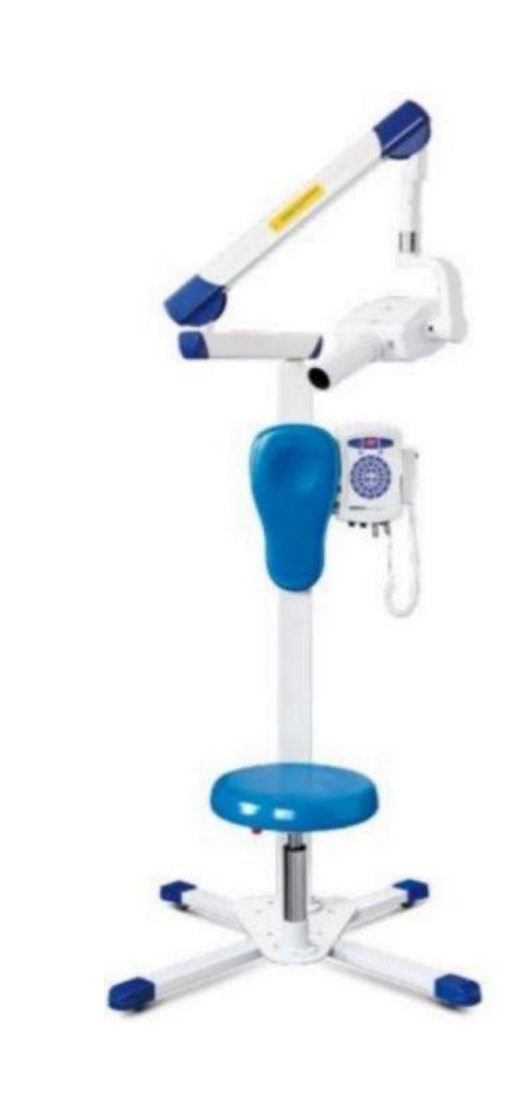

NKK10AFloor-standing · 60/70 kVp · 8 mA

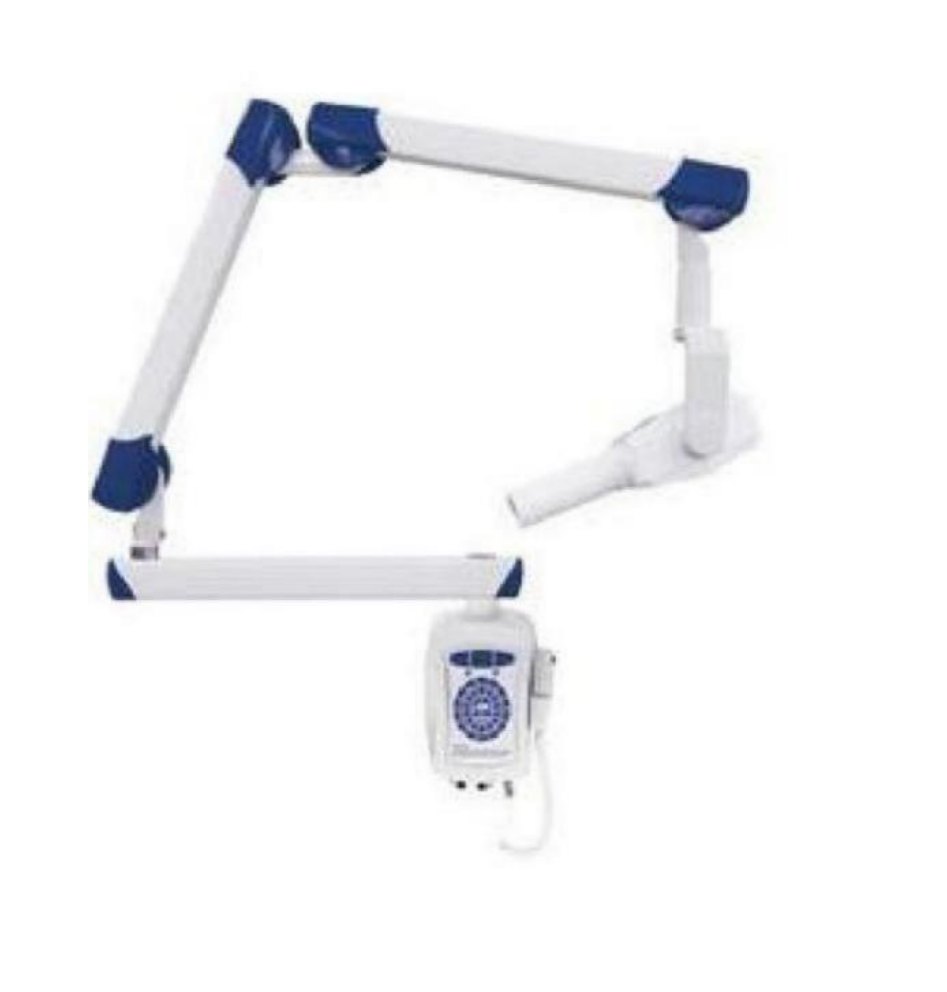

NKK10BWall-mounted · near-2 m arm

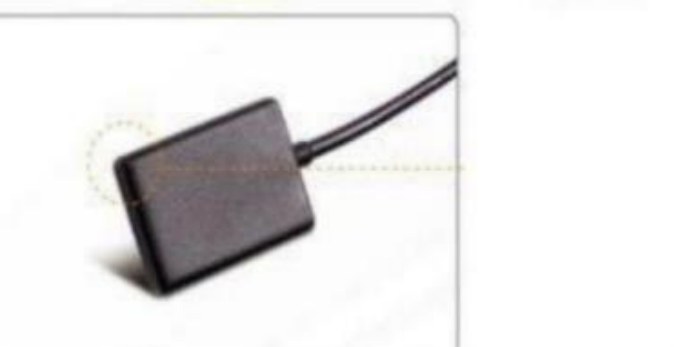

SensorDigital intraoral · APS CMOS · IP68
