Portable Veterinary X-ray Unit 5.6 kW (KWJ)

5 kW (5.6 kW max) · 40–120 kV · 10–100 mA · 0.1–320 mAs · 110 V / 220 V · 17.5 kg

The KWJ configuration — the wide-range workhorse. 40–120 kV, an extended 0.1–320 mAs range and 10–6300 ms exposure times, powered from either 110 V or 220 V mains so the same unit travels worldwide. Available with 8 kW and 12.5 kW generator options on request.

5.6 kW max power40 – 120 kV (1 kV step)0.1 – 320 mAs110 V / 220 V dual mains
Get a Quote in 24h
Product Views

Product Photos

KWJ version — compact touchscreen console
KWJ version — compact touchscreen console

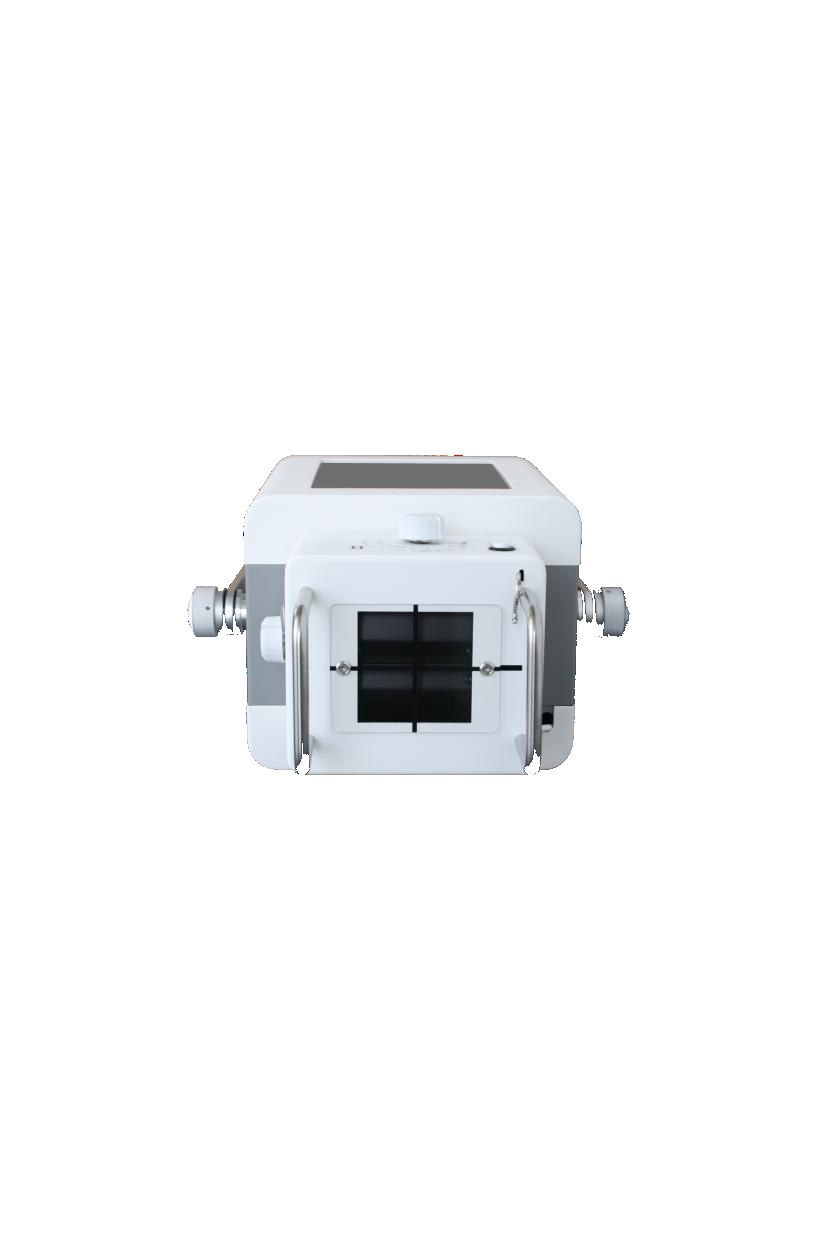

KWJ version — unit with collimator and tube head
KWJ version — unit with collimator and tube head
Optional trolley case for transport
Optional trolley case for transport
Specifications

Technical Parameters

Output power5 kW (maximum 5.6 kW; 8 kW / 12.5 kW versions on request)
Work voltage220 VAC / 110 VAC, 60 / 50 Hz
kV range40 – 120 kV, 1 kV step
mA range10 – 100 mA
ms range10 – 6300 ms
mAs range0.1 – 320 mAs
Exposure controlHand switch / remote control
Working frequency100 kHz
Dimension260 × 245 × 230 mm
Weight17.5 kg
Package size (est.)55 × 38 × 33 cm
Net / gross weight17.5 kg / 22.5 kg
  • Touchscreen console (on DR systems) — fast parameter setting and workflow
  • Works with veterinary X-ray generators, X-ray tubes and flat panel detectors
  • Radiography of head, chest, abdomen, limbs and bones — standing, lying and lateral positions
  • Cassette carriage accepts CR, DR and IP plates of different sizes
  • Four-way floating table surface with electromagnetic lock
  • 20–50 kW X-ray tube options (200–500 mA @100 kV), up to 630 mA on request
  • CsI flat panel detector — 17×17 in, 3072×3072 matrix, 139 μm pixel, 3.6 lp/mm
  • Suitable for pet hospitals and clinics, research institutions and medical colleges
Versions: Optional trolley case (57 × 39 × 36.5 cm); mobile stands NK-BX1 / NK-BX2 / NK-BX3 / NK-BX5; pairs with NK3543/NK4343 flat panel detectors to form a portable DR system.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope

Where It Works

  • Pet hospitals and veterinary clinics — daily radiography of dogs, cats and exotic animals — 宠物医院诊所日常摄片
  • Universities, research institutions and medical colleges — scientific research and teaching — 科研机构与医学院校教学科研
  • Orthopedic and chest imaging of pets in standing, lying and lateral positions — 宠物站立/卧姿/侧位头胸腹四肢摄片
  • Equine and large-animal practices with the high-power tube options — 马匹等大动物高功率摄片
  • Mobile screening with the wheeled table and portable generator — 床体万向轮移动筛查
