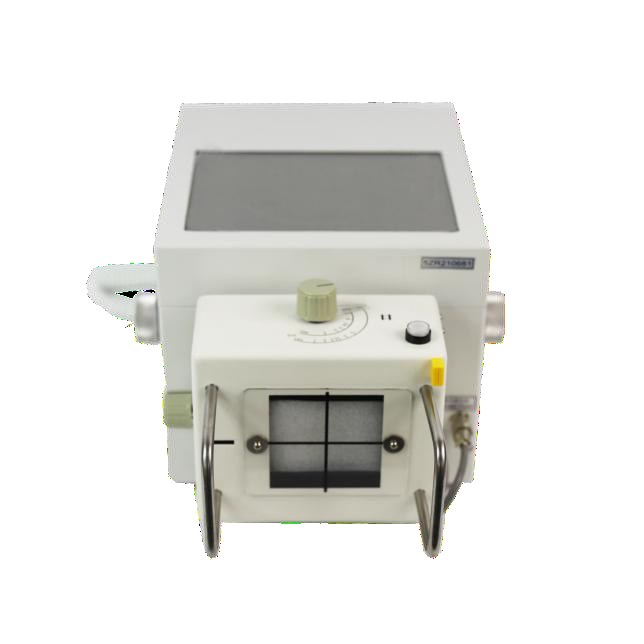

Portable Veterinary X-ray Unit 5 kW (DT)
5 kW (5.3 kW max) · 40–125 kV · 10–100 mA · 0.1–200 mAs · 15 kg · 265 × 240 × 210 mm

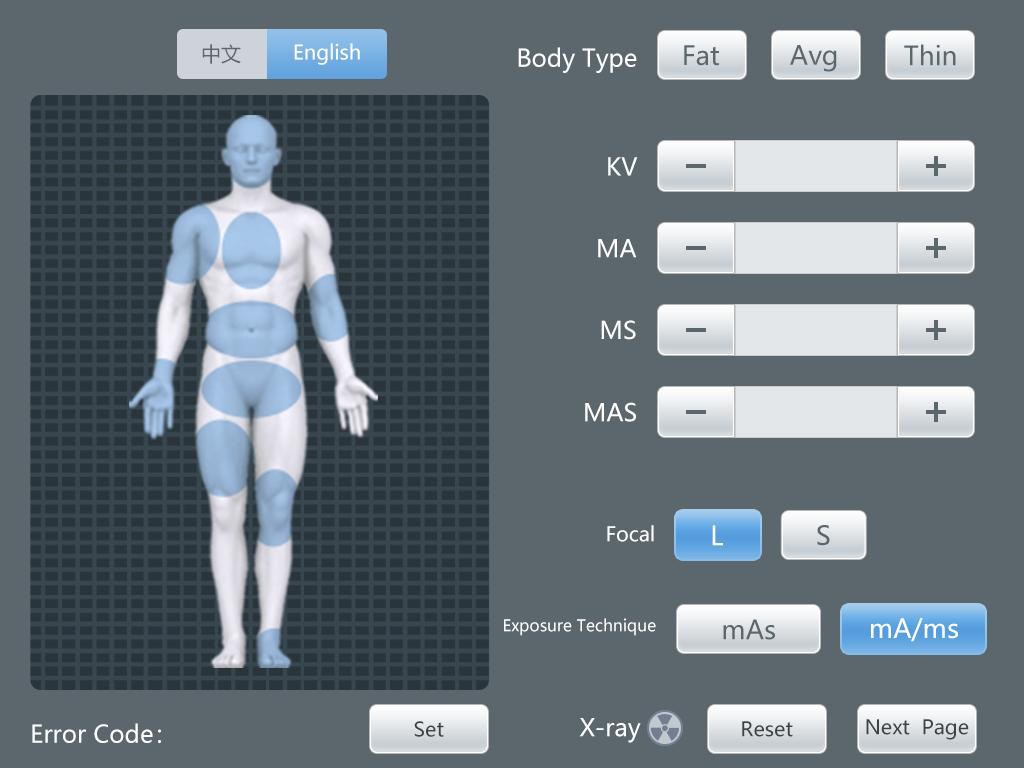

The DT configuration of our 5 kW portable radiographic family — the lightest of the three at 15 kg. 40–125 kV in 1 kV steps, 10–100 mA, mAs and mA/ms exposure modes with anatomical programming, RS-232 interface, and a trolley case for clinic-to-clinic travel. Pair it with a Newheek flat panel detector to form a complete portable DR system.
5.3 kW max power40 – 125 kV (1 kV step)0.1 – 200 mAs15 kg · lightest version
Product Views
Product Photos
Specifications
Technical Parameters
| Output power | 5 kW (maximum 5.3 kW) |
|---|---|
| Work voltage | 220 – 240 VAC |
| kV range | 40 – 125 kV, 1 kV step |
| mA range | 10 – 100 mA |
| ms range | 1 – 4000 ms |
| mAs range | 0.1 – 200 mAs |
| X-ray focal spots | Small 0.6 / large 1.8 |
| Max tube current | 20 mA (small filament) / 100 mA (large filament) |
| Inherent filtration | 0.6 mmAl · combination head filter 1.5 mmAl |
| Exposure control | Hand switch / remote control |
| Interface language | Chinese / English / Spanish |
| Communication interface | RS-232 |
| Dimension | 265 × 240 × 210 mm |
| Weight | 15 kg |
| Package size (est.) | 54 × 37 × 33 cm |
| Net / gross weight | 15 kg / 22.5 kg |
- Touchscreen console (on DR systems) — fast parameter setting and workflow
- Works with veterinary X-ray generators, X-ray tubes and flat panel detectors
- Radiography of head, chest, abdomen, limbs and bones — standing, lying and lateral positions
- Cassette carriage accepts CR, DR and IP plates of different sizes
- Four-way floating table surface with electromagnetic lock
- 20–50 kW X-ray tube options (200–500 mA @100 kV), up to 630 mA on request
- CsI flat panel detector — 17×17 in, 3072×3072 matrix, 139 μm pixel, 3.6 lp/mm
- Suitable for pet hospitals and clinics, research institutions and medical colleges

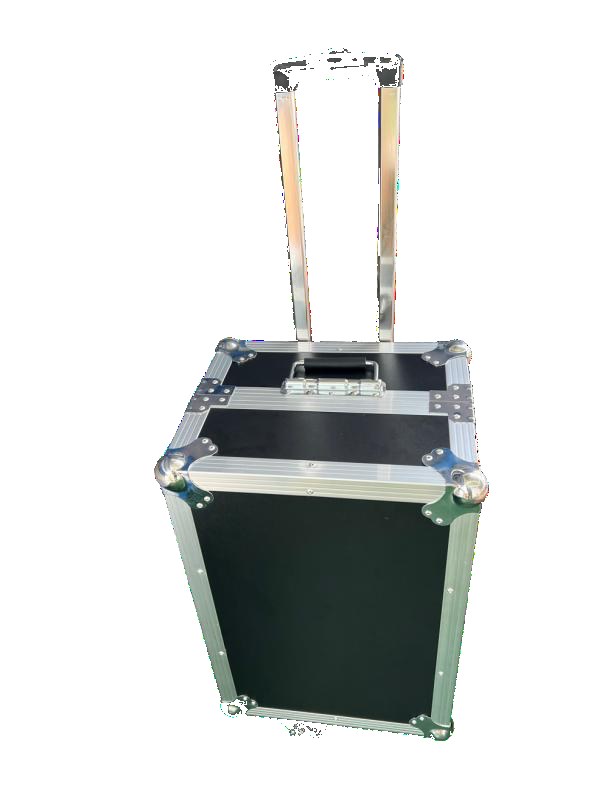

Versions: Optional trolley case (57 × 39 × 36.5 cm); mobile stands NK-BX1 (manual, SID 50–189 cm) / NK-BX2 / NK-BX3 (electric) / NK-BX5 (foldable, 11.5 kg); pairs with NK3543/NK4343 flat panel detectors (wired or wireless) to form a portable DR system.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope
Where It Works
- Pet hospitals and veterinary clinics — daily radiography of dogs, cats and exotic animals — 宠物医院诊所日常摄片
- Universities, research institutions and medical colleges — scientific research and teaching — 科研机构与医学院校教学科研
- Orthopedic and chest imaging of pets in standing, lying and lateral positions — 宠物站立/卧姿/侧位头胸腹四肢摄片
- Equine and large-animal practices with the high-power tube options — 马匹等大动物高功率摄片
- Mobile screening with the wheeled table and portable generator — 床体万向轮移动筛查
