Veterinary DR X-ray System (Combined Unit)
20–50 kW tube options · 140 × 72.5 cm table · column 200–212 cm (3 levels) · 17×17 in FPD

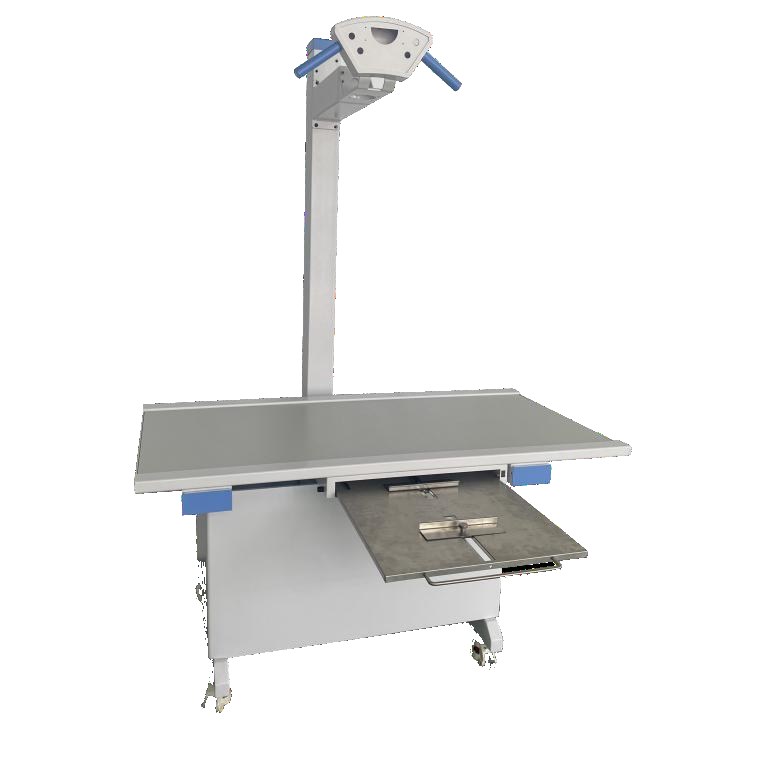

The combined veterinary DR unit pairs a 140 × 72.5 cm radiographic table on castors with a three-level adjustable column (200–212 cm) and the same 20–50 kW tube family. The cassette tray travels 23 cm under the table for quick plate changes, and the table surface floats four ways with electromagnetic locking.
3-level adjustable column140 × 72.5 cm tableCassette travel 23 cm17×17 in flat panel detector
Product Views
Product Photos
Specifications
Technical Parameters
| X-ray tube power | 20 / 30 / 40 / 50 kW optional (200–500 mA @100 kV), up to 630 mA |
|---|---|
| Max irradiation field | 440 × 440 mm (SID = 100 cm) |
| Collimator light field brightness | > 160 lux |
| Collimator contrast | > 4 : 1 |
| Collimator lamp | 24 V / 150 W, single lighting 30 s |
| Focus-to-installation distance | 60 mm |
| Inherent filter (75 kV) | 1 mmAl |
| Table surface material | Density board |
| Table size | 140 × 72.5 cm |
| Table height | 75 cm (including castors) |
| Column height | 200 – 212 cm, 3-level adjustable |
| Table horizontal travel | 90 cm |
| Table longitudinal travel | 40 cm |
| Cassette travel | 23 cm |
| Flat panel detector | CsI · 17×17 in · 3072×3072 · 139 μm · 16 bit · 3.6 lp/mm · 1 s · wired/wireless |
| Mobility | Table on universal castors, four-way floating surface with electromagnetic lock |
- Touchscreen console (on DR systems) — fast parameter setting and workflow
- Works with veterinary X-ray generators, X-ray tubes and flat panel detectors
- Radiography of head, chest, abdomen, limbs and bones — standing, lying and lateral positions
- Cassette carriage accepts CR, DR and IP plates of different sizes
- Four-way floating table surface with electromagnetic lock
- 20–50 kW X-ray tube options (200–500 mA @100 kV), up to 630 mA on request
- CsI flat panel detector — 17×17 in, 3072×3072 matrix, 139 μm pixel, 3.6 lp/mm
- Suitable for pet hospitals and clinics, research institutions and medical colleges
Specifications from the manufacturer's product datasheet and operator manuals (Shandong Newheek Imaging Equipment Co., Ltd.). Tube power and detector connection are configurable — ask us for a configuration proposal for your market.
Application Scope
Where It Works
- Pet hospitals and veterinary clinics — daily radiography of dogs, cats and exotic animals — 宠物医院诊所日常摄片
- Universities, research institutions and medical colleges — scientific research and teaching — 科研机构与医学院校教学科研
- Orthopedic and chest imaging of pets in standing, lying and lateral positions — 宠物站立/卧姿/侧位头胸腹四肢摄片
- Equine and large-animal practices with the high-power tube options — 马匹等大动物高功率摄片
- Mobile screening with the wheeled table and portable generator — 床体万向轮移动筛查
