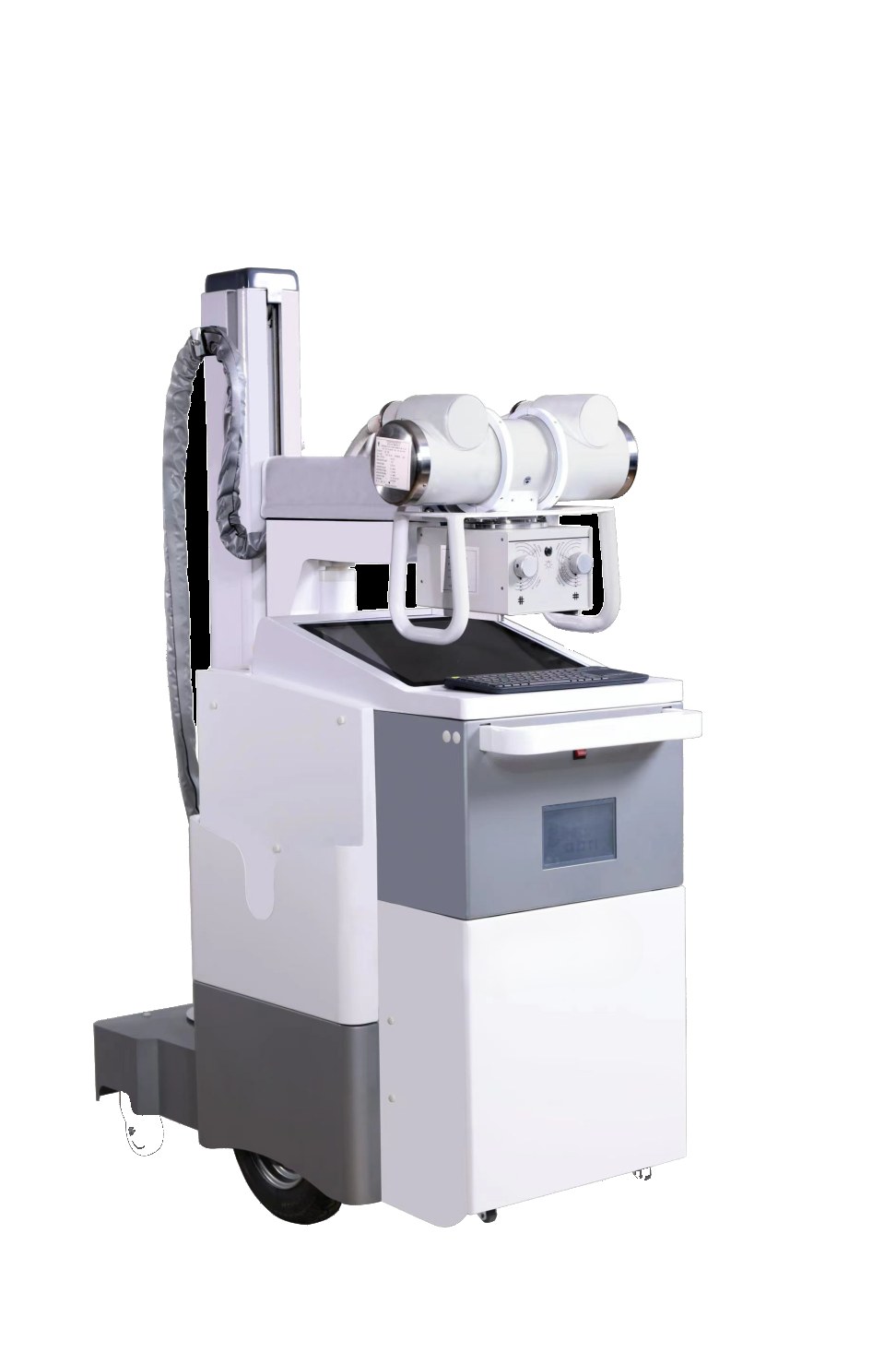

Mobile X-ray Machine 400 mA
40–150 kV · max 400 mA tube current · battery DC 54 V 13 Ah · electric assist · focus height 950–1850 mm
A ward-and-corridor workhorse with electric power assist for effortless forward and backward movement. Dual-core controlled touchscreen console with wired and wireless hand-switches, kV closed-loop control for stable output, an automatic retractable power cable, and storage boxes on both sides for the DR flat panel, cassettes and accessories.
Max 400 mA · 150 kVp40 – 150 kV (1 kV step)Battery DC 54 V 13 AhElectric assist movement
Product Views
Product Photos
Specifications
Technical Parameters
| Generator | High-frequency high-voltage, kV closed-loop control |
|---|---|
| Power supply | 220 VAC ± 10 % · 50 Hz ± 1 Hz · capacity 1.5 kVA · internal resistance ≤ 1 Ω |
| Internal battery | ≤ DC 54 V, 13 Ah |
| kV range | 40 – 150 kV, 1 kV step, stepless continuous adjustment |
| mA range | 10 – 200 mA (generator) |
| Time range | 0.1 – 6.3 s |
| X-ray tube | Model C40 · dual focus 0.6 / 1.2 mm · max 20 / 40 kW @0.1 s · max 400 mA · 150 kVp |
| Focus-to-ground height | 950 – 1850 mm |
| Tube rotation | ± 90° around column · ± 180° around own axis |
| Collimator | SID 1 m: radiation field ≥ 430 × 430 mm · model Dira-xsq-02 · 1 mmAl min filtration |
| Exposure control | Touchscreen · wired hand-switch and wireless hand-switch |
| Protections | Load interlock, fault alarm, filament preheating, tube temperature monitoring |
| Cable | Automatic retractable power cable mechanism |
- High-frequency inverter generator — stable, precise exposure at lower dose
- Human anatomy program (APR) — head, chest, abdomen, lumbar, cervical, limbs
- Pairs with Newheek flat panel detectors (wired or wireless) for digital radiography
- Touchscreen console with kV / mA / mAs programming on portable and mobile units
- Hand-switch and remote / wireless exposure control options
- Fault self-protection and self-diagnosis with filament preheating
- Factory-direct support from Shandong Newheek Imaging Equipment Co., Ltd.

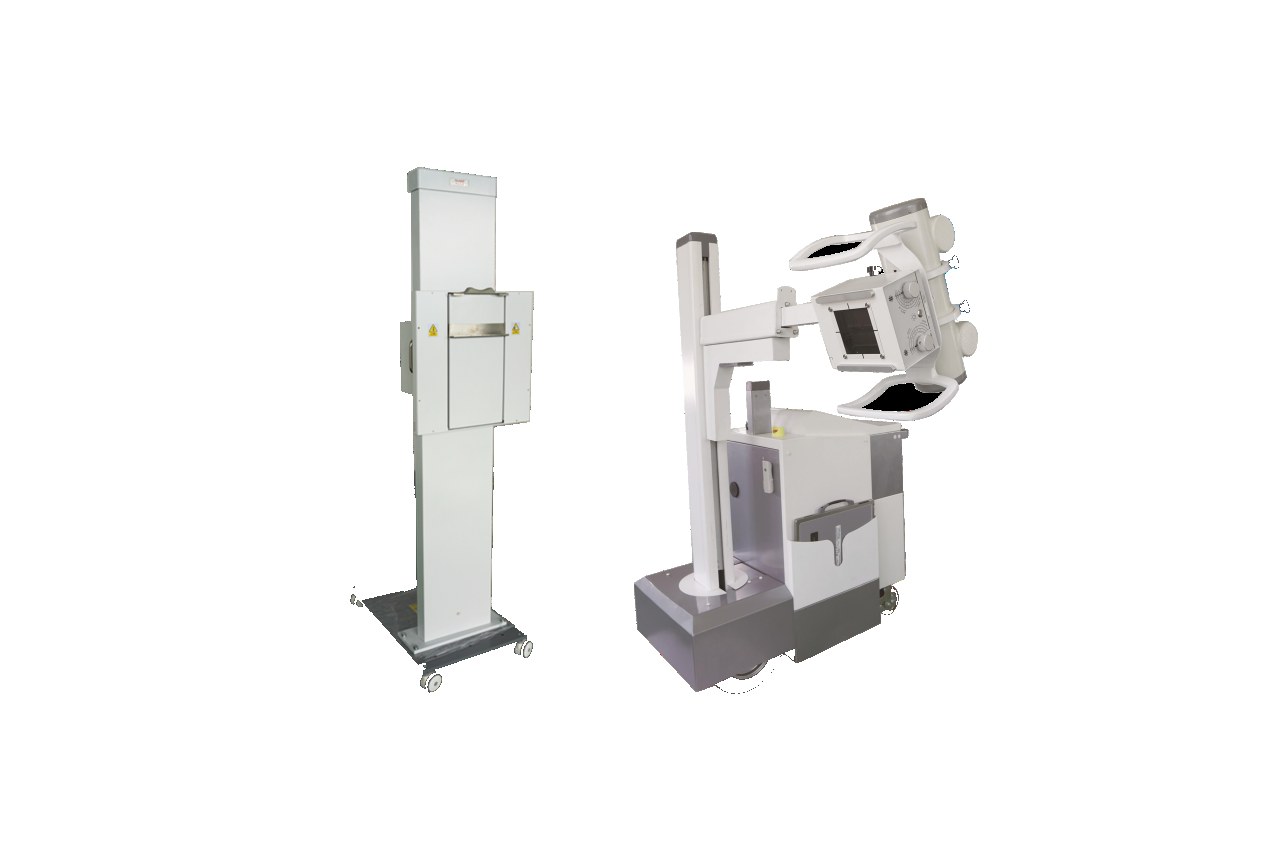

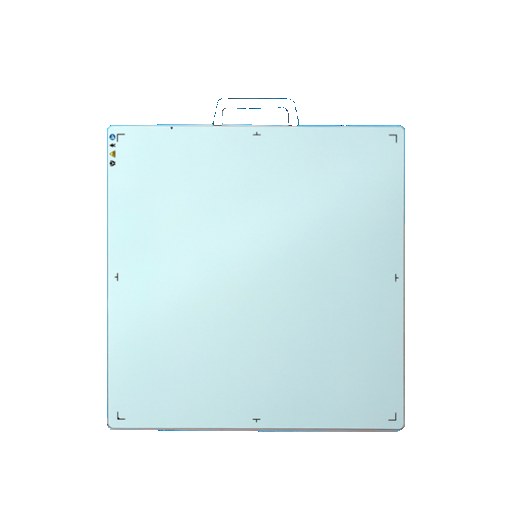

Versions: Optional chest X-ray bucky stand · optional radiographic table · NK4343W wireless flat panel detector (a-Si/CsI, 3072×3072, 3.6 lp/mm, GBE/802.11ac, 8 h battery) · optional desktop computer or laptop for acquisition.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope
Where It Works
- Hospitals, clinics and physical examination centers — routine radiography of head, chest, abdomen and limbs — 医院、诊所、体检中心常规摄片
- Ward and bedside imaging with the mobile and portable units — 病房床旁摄片
- Ambulances, disaster relief and first-aid teams — field X-ray photography — 救护车、救灾急救野外摄片
- Mobile medical examination vehicles with the vehicle-mounted DR system and LZ rack series — 体检车/医疗车车载 DR 检查
- Operating theaters and orthopedics — multi-angle positioning with the suspended DR — 手术室骨科多角度摄影
Explore the Line
Other Medical Imaging Products

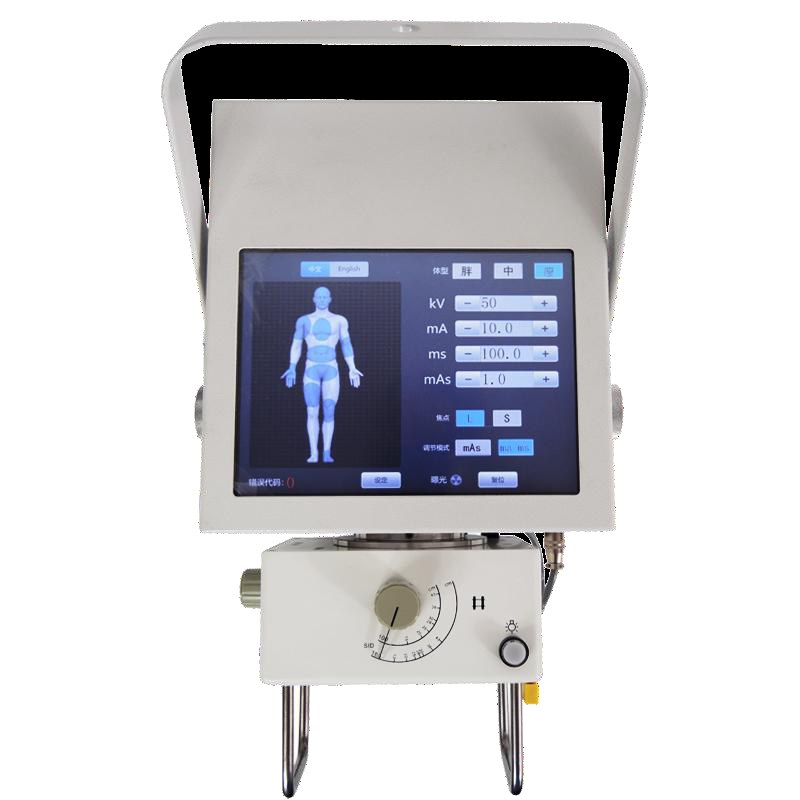

Portable X-ray Unit 5 kW · DT40–125 kV · 0.1–200 mAs · 15 kg · 220–240 V

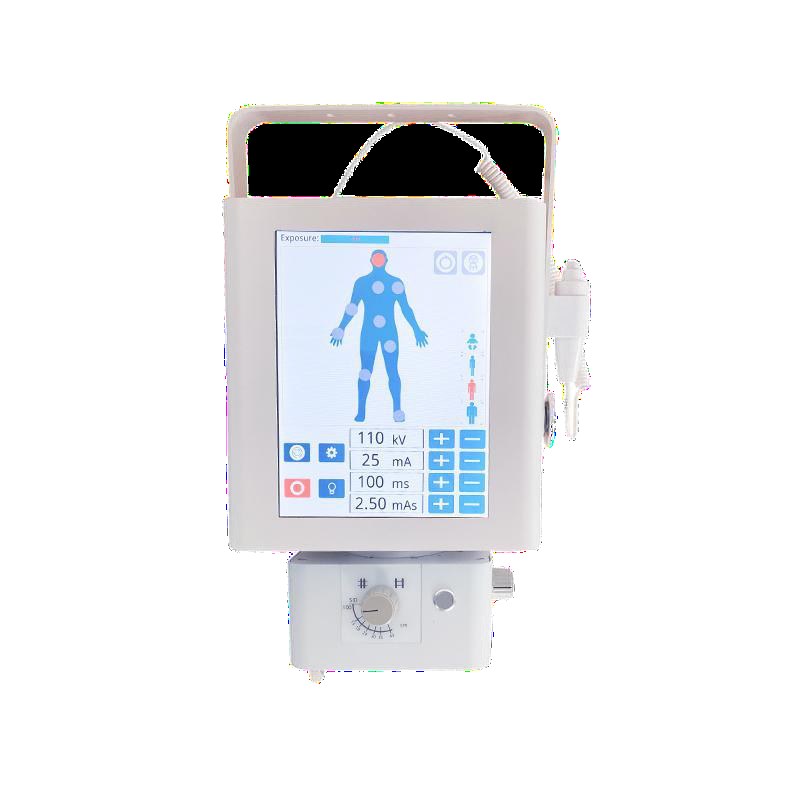

Portable X-ray Unit 5.6 kW · KWJ40–120 kV · 0.1–320 mAs · 110/220 V · 17.5 kg

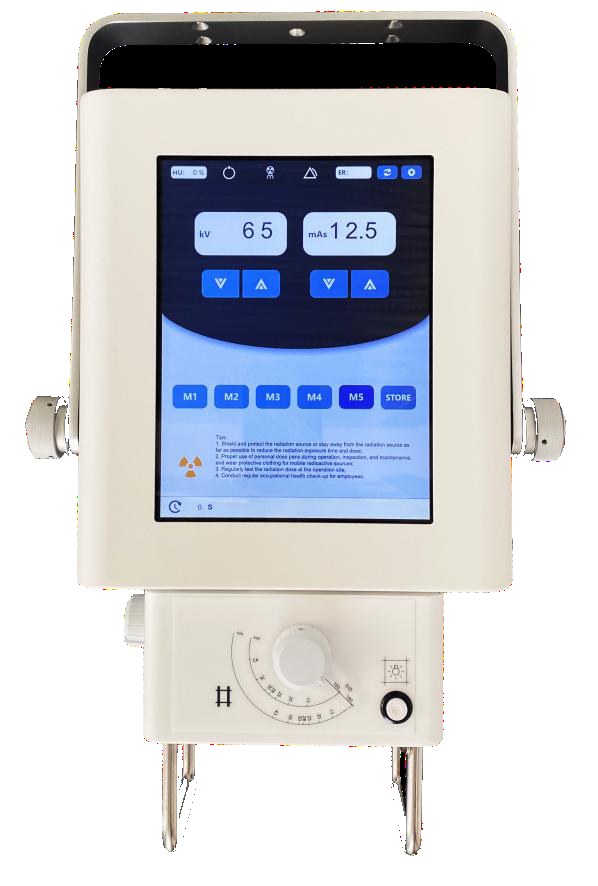

Portable X-ray Unit 5.6 kW · YR40–125 kV · 0.1–100 mAs · 4 languages · 17.5 kg
Vehicle-Mounted Digital DR50 kW generator · 40–150 kV · 17×17 in detector · lead-shielded

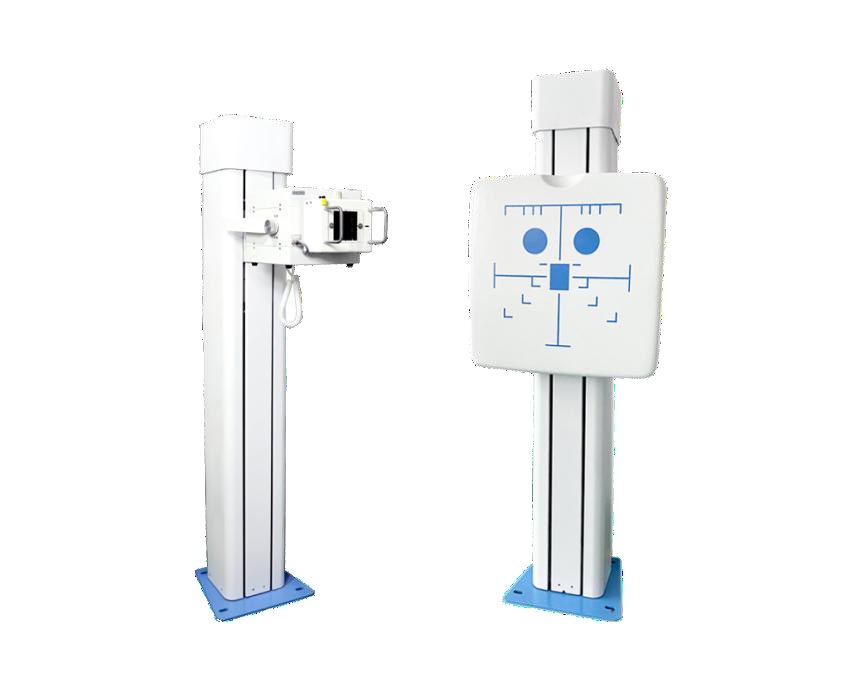

Vehicle Dual-Column Rack · LZLZ-1 to LZ-4 · 165 cm · electric lifting · 40×20 cm base

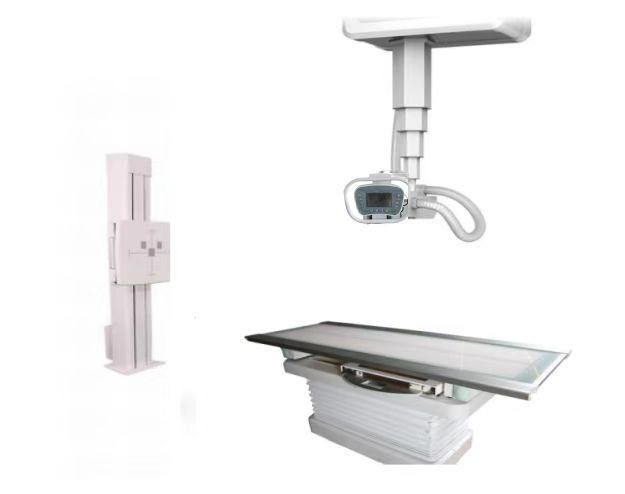

Suspended DR X-ray Machine40–150 kV · 0.1–640 mAs · six-way floating table · 17×17 FPD
