Suspended (Ceiling-Mounted) DR X-ray Machine

40–150 kV · 10–640 mA · 0.1–640 mAs · 17×17 in FPD · 2000 × 828 mm six-way floating table

A full digital radiography room: ceiling-suspended tube with ≥120 cm X-travel and ≥100 cm Y-travel, a 2000 × 828 mm six-way floating table with 450 mm longitudinal and 250 mm transverse travel, and a bucky stand with ≥120 cm vertical movement. Microcomputer control, 2400-record APR memory and a 17×17 in wired flat panel detector deliver 3.6 lp/mm images.

40 – 150 kV · 1 kV step10 – 640 mA · 0.1 – 640 mAsSix-way floating table 2000 × 828 mm17×17 in FPD · 3.6 lp/mm
Get a Quote in 24h
Product Views

Product Photos

Complete system — suspended tube, floating table and bucky stand
Complete system — suspended tube, floating table and bucky stand

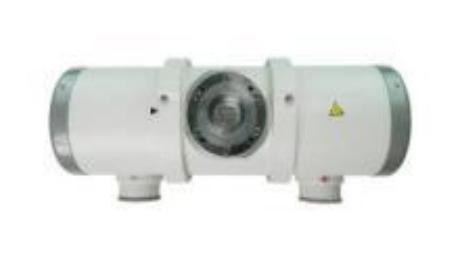

XD52 rotating-anode X-ray tube, dual focus 1.0 / 2.0 mm
XD52 rotating-anode X-ray tube, dual focus 1.0 / 2.0 mm

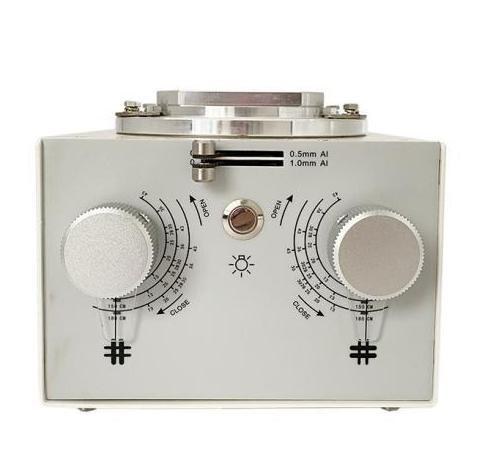

Manual collimator — 440 × 440 mm max field @ SID 100 cm
Manual collimator — 440 × 440 mm max field @ SID 100 cm

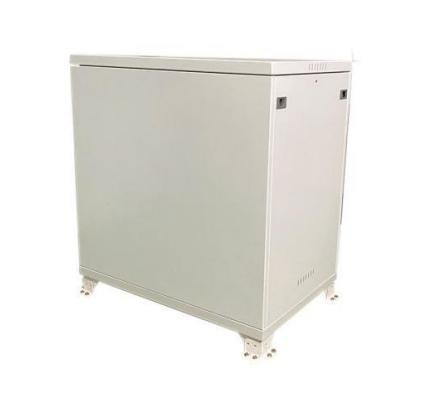

High-frequency high-voltage generator cabinet, 380/220 V three-phase
High-frequency high-voltage generator cabinet, 380/220 V three-phase

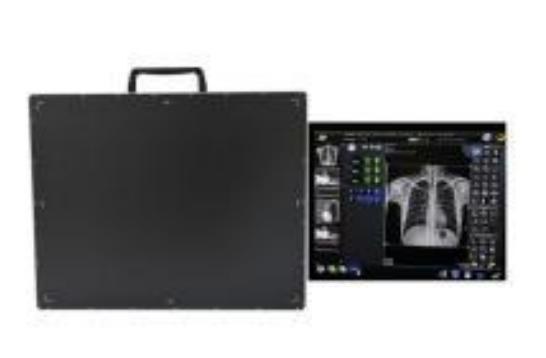

17×17 in flat panel detector with acquisition workstation
17×17 in flat panel detector with acquisition workstation

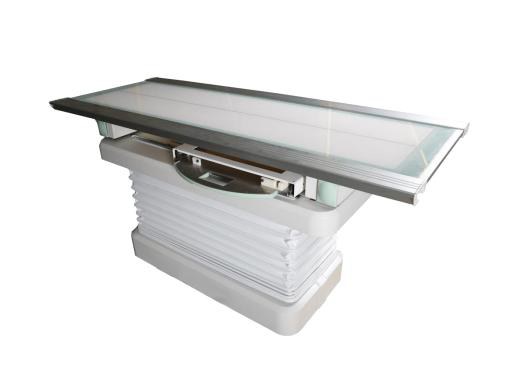

Fixed six-way floating table — acrylic/composite top
Fixed six-way floating table — acrylic/composite top
Specifications

Technical Parameters

X-ray tubeXD52-30.50/125 kV·150 kV (or XD52-20.40/125 kV) · dual focus 1.0 / 2.0 mm · anode 2800 r/min
HV generatorHigh-frequency · 380 V / 220 V ± 10 % three-phase five-wire · 50 Hz ± 1 Hz
Tube voltage40 – 150 kV, 1 kV step
Tube current50 – 320 mA / 10 – 640 mA, accuracy ≤ ± 10 %
Exposure time2 – 5000 ms / 1 – 10000 ms
mAs range1 – 250 mAs / 0.1 – 640 mAs, accuracy ≤ ± 5 % + 0.2 mAs
APR storage2400 records
CollimatorMax field 440 × 440 mm @ SID 100 cm · inherent filtration 1 mmAl @75 kV · light field >160 lux
Flat panel detector17×17 in wired · a-Si / CsI · 430 × 430 mm · 3072 × 3072 · 139 μm · 16 bit · 3.6 lp/mm · 1 s · 3.4 kg
Table surface2000 × 828 mm · acrylic / composite board · foot-switch lock
Table travelVertical 360 ± 20 mm · longitudinal 450 ± 20 mm · transverse 250 ± 10 mm (manual) · cassette 500 ± 10 mm
Table lowest position565 mm above floor
Suspension rackInstall height ≥ 250 cm · X-travel ≥ 120 cm · Y-travel ≥ 100 cm · Z-travel ≥ 150 cm
Suspension armTelescopic 10 – 26 cm · motor 220 V 50 Hz
Bucky stand travelVertical ≥ 120 cm
  • High-frequency inverter generator — stable, precise exposure at lower dose
  • Human anatomy program (APR) — head, chest, abdomen, lumbar, cervical, limbs
  • Pairs with Newheek flat panel detectors (wired or wireless) for digital radiography
  • Touchscreen console with kV / mA / mAs programming on portable and mobile units
  • Hand-switch and remote / wireless exposure control options
  • Fault self-protection and self-diagnosis with filament preheating
  • Factory-direct support from Shandong Newheek Imaging Equipment Co., Ltd.
Versions: Tube options XD52-30.50 or XD52-20.40; additional filtration 1 mmAl and 2 mmAl included; installation height and travels per room drawings confirmed before delivery.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope

Where It Works

  • Hospitals, clinics and physical examination centers — routine radiography of head, chest, abdomen and limbs — 医院、诊所、体检中心常规摄片
  • Ward and bedside imaging with the mobile and portable units — 病房床旁摄片
  • Ambulances, disaster relief and first-aid teams — field X-ray photography — 救护车、救灾急救野外摄片
  • Mobile medical examination vehicles with the vehicle-mounted DR system and LZ rack series — 体检车/医疗车车载 DR 检查
  • Operating theaters and orthopedics — multi-angle positioning with the suspended DR — 手术室骨科多角度摄影
