Vehicle-Mounted Dual-Column Rack (LZ Series)
For examination & medical vehicles · 165 cm max height · electric lifting · compact 40 × 40 / 40 × 20 cm base

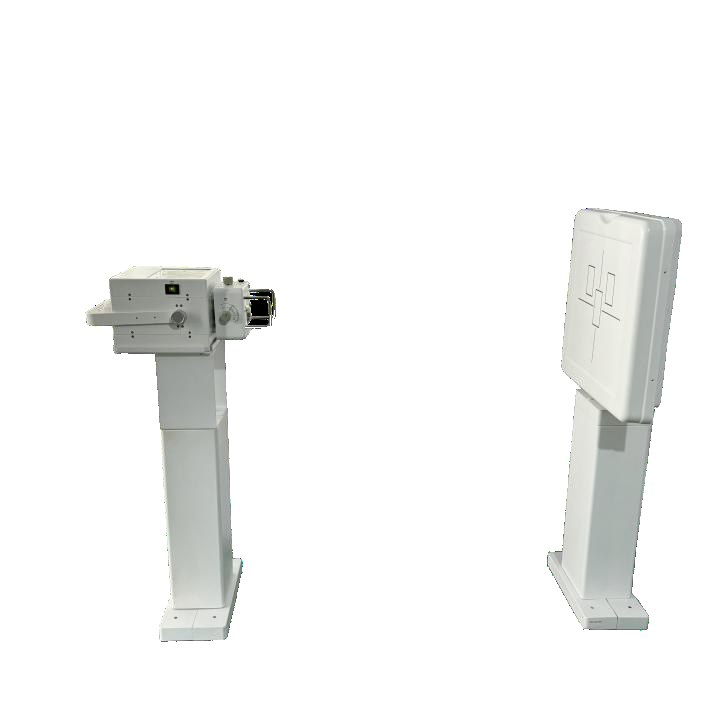

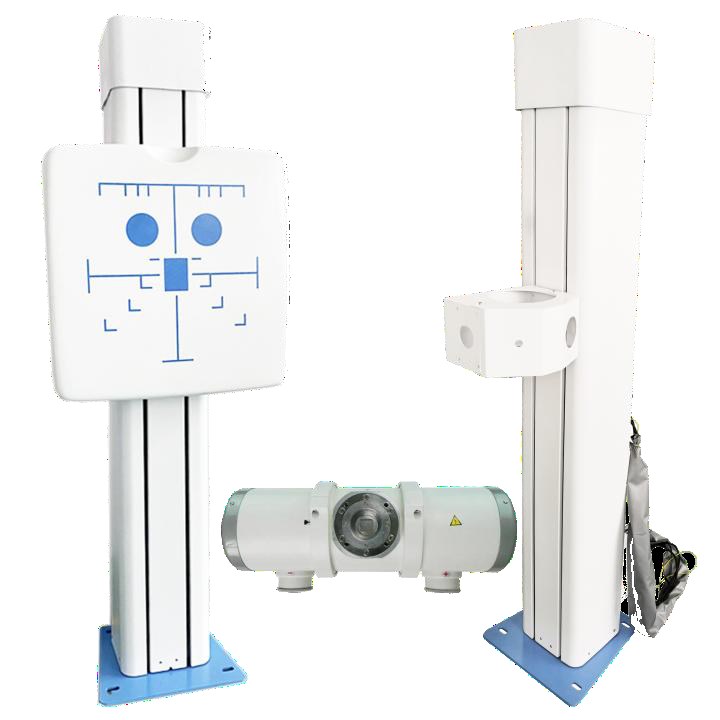

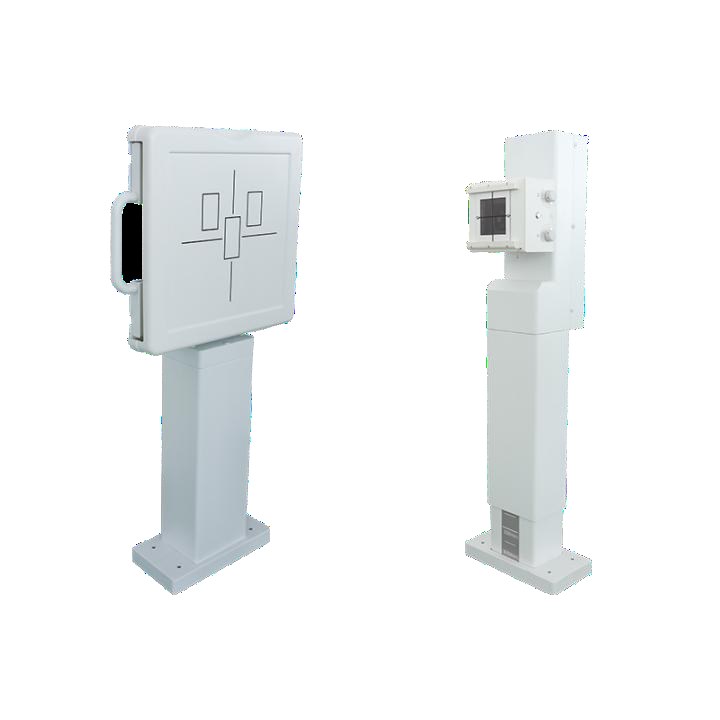

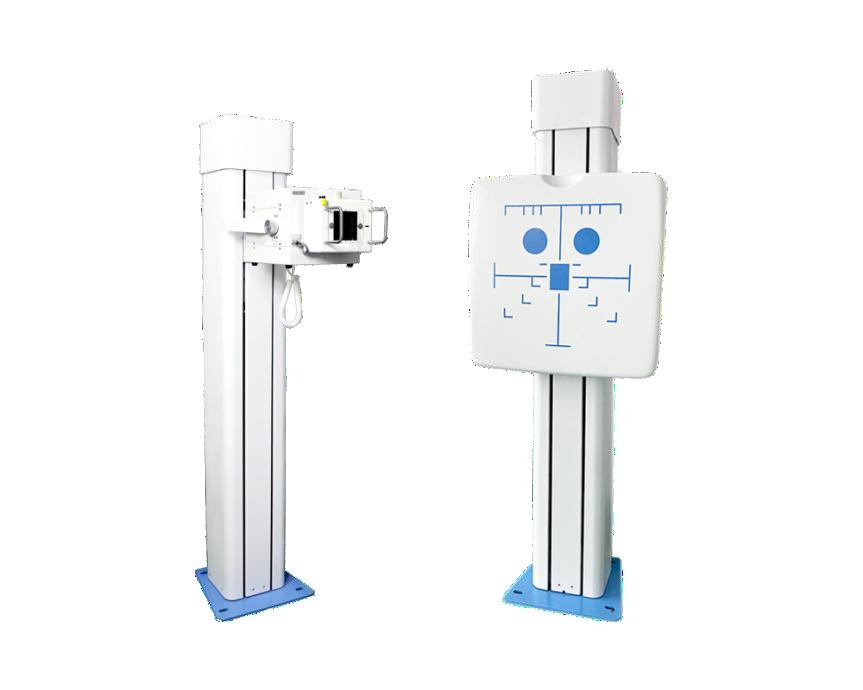

A compact dual-column rack family for medical examination vehicles and other special vehicles. Small footprint, electric up-down lifting, and five variants covering every set-up: combined machine head, ball tube with collimator, or portable machine — with head rotation for chest and supine positioning on the LZ-4.
LZ-1 / LZ-2 / LZ-3 / LZ-3A / LZ-4165 cm max heightElectric lifting 100 – 140 cm strokeFits examination & medical vehicles
Product Views
Product Photos
Specifications
Technical Parameters
| Models | LZ-1 · LZ-2 · LZ-3 · LZ-3A · LZ-4 |
|---|---|
| Max height above ground | 165 cm (all models) |
| Vertical stroke | 100 – 140 cm (LZ-3 / LZ-3A / LZ-4) |
| Column base | 40 × 40 cm (LZ-1 / LZ-2) · 40 × 20 cm (LZ-3 / LZ-3A / LZ-4) |
| Tube focal length | 180 cm (LZ-3 / LZ-3A) |
| Upper arm distance | 80 cm (LZ-4) |

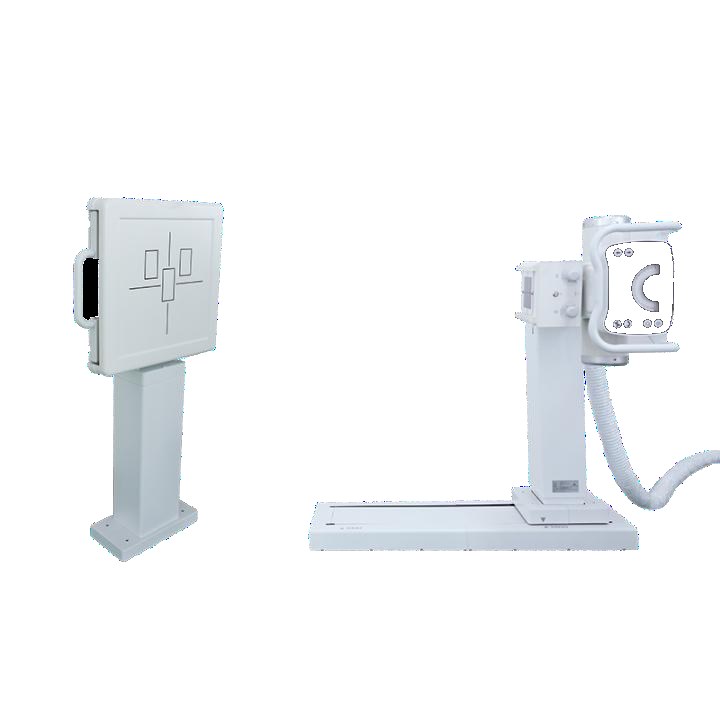

| Head rotation | LZ-4: rotatable head for chest (standing) and bed (supine) positions |
| Lifting | Electric up-down, microcomputer controlled synchronous lifting |
| Package (LZ-3 / LZ-3A) | 155 × 110 × 145 cm · 190 kg gross |
| Package (LZ-1 / LZ-2 / LZ-4) | 220 × 110 × 105 cm · 590 kg gross |
- High-frequency inverter generator — stable, precise exposure at lower dose
- Human anatomy program (APR) — head, chest, abdomen, lumbar, cervical, limbs
- Pairs with Newheek flat panel detectors (wired or wireless) for digital radiography
- Touchscreen console with kV / mA / mAs programming on portable and mobile units
- Hand-switch and remote / wireless exposure control options
- Fault self-protection and self-diagnosis with filament preheating
- Factory-direct support from Shandong Newheek Imaging Equipment Co., Ltd.
Versions: Adaptable to various examination and medical vehicles; final layout confirmed with the customer before production. Packaging data for reference only.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope
Where It Works
- Hospitals, clinics and physical examination centers — routine radiography of head, chest, abdomen and limbs — 医院、诊所、体检中心常规摄片
- Ward and bedside imaging with the mobile and portable units — 病房床旁摄片
- Ambulances, disaster relief and first-aid teams — field X-ray photography — 救护车、救灾急救野外摄片
- Mobile medical examination vehicles with the vehicle-mounted DR system and LZ rack series — 体检车/医疗车车载 DR 检查
- Operating theaters and orthopedics — multi-angle positioning with the suspended DR — 手术室骨科多角度摄影
