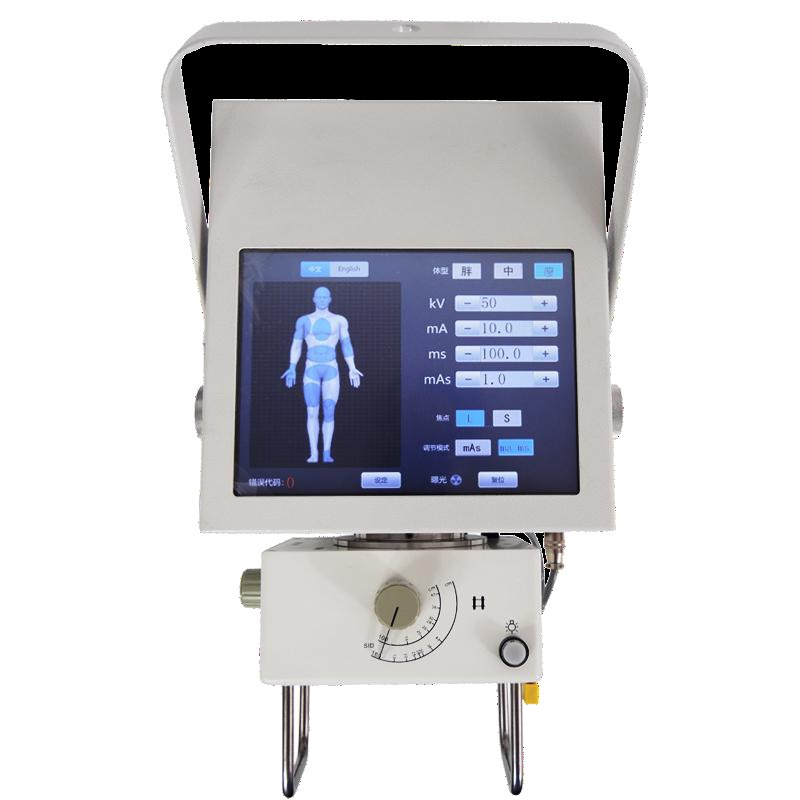

Portable Medical X-ray Unit 5 kW (DT)
5 kW (5.3 kW max) · 40–125 kV · 10–100 mA · 0.1–200 mAs · 15 kg · 265 × 240 × 210 mm
The DT configuration of our 5 kW portable radiographic family — the lightest of the three at 15 kg. 40–125 kV in 1 kV steps, 10–100 mA, mAs and mA/ms exposure modes with anatomical programming, RS-232 interface, and a trolley case for clinic-to-clinic travel. Designed for human limb and chest radiography in hospitals, clinics, ambulances and field first-aid; pair it with a Newheek flat panel detector to form a complete portable DR system.
5.3 kW max power40 – 125 kV (1 kV step)0.1 – 200 mAs15 kg · lightest version
Product Views
Product Photos
Specifications
Technical Parameters
| Output power | 5 kW (maximum 5.3 kW) |
|---|---|
| Work voltage | 220 – 240 VAC |
| kV range | 40 – 125 kV, 1 kV step |
| mA range | 10 – 100 mA |
| ms range | 1 – 4000 ms |
| mAs range | 0.1 – 200 mAs |

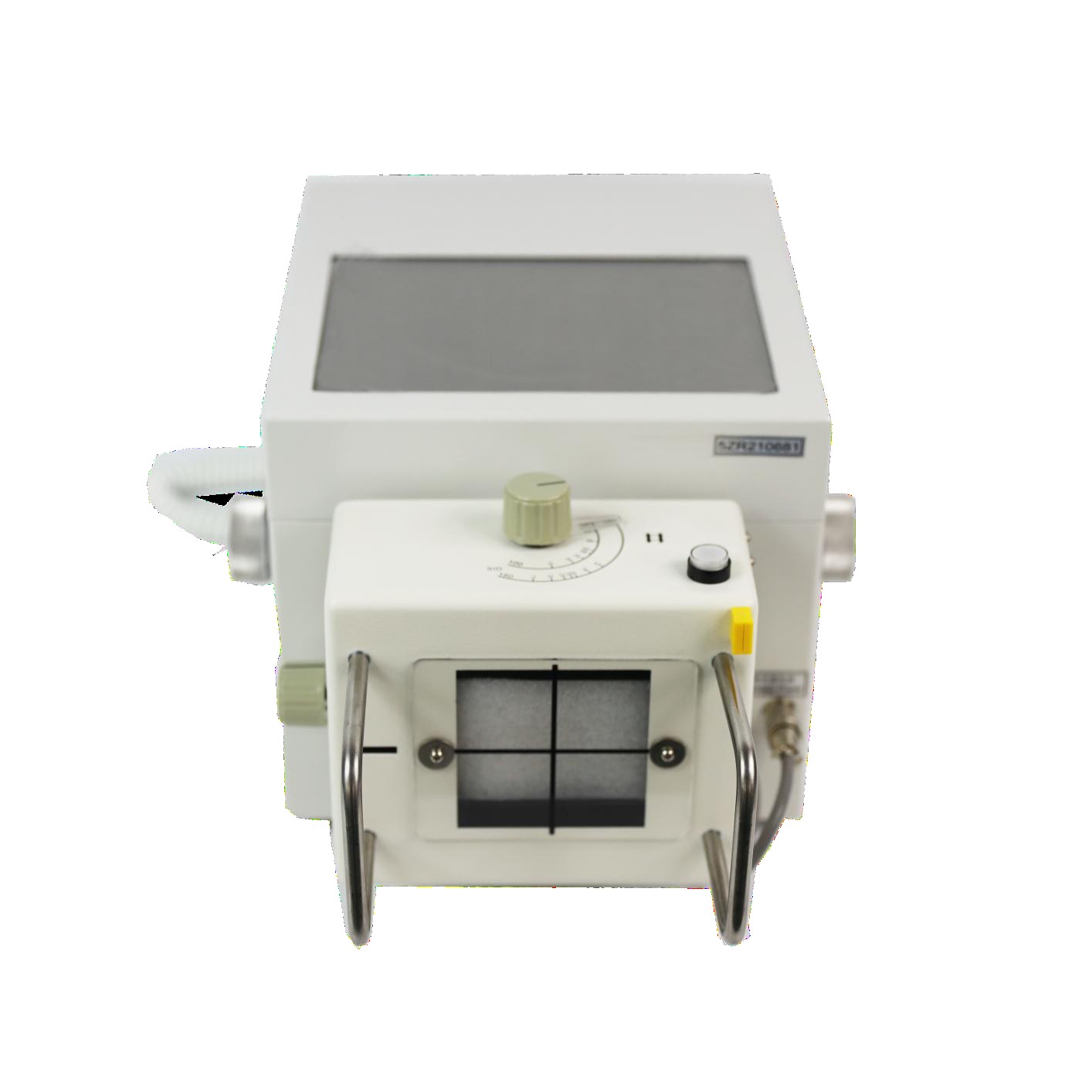

| X-ray focal spots | Small 0.6 / large 1.8 |
| Max tube current | 20 mA (small filament) / 100 mA (large filament) |
| Inherent filtration | 0.6 mmAl · combination head filter 1.5 mmAl |
| Exposure control | Hand switch / remote control |
| Interface language | Chinese / English / Spanish |

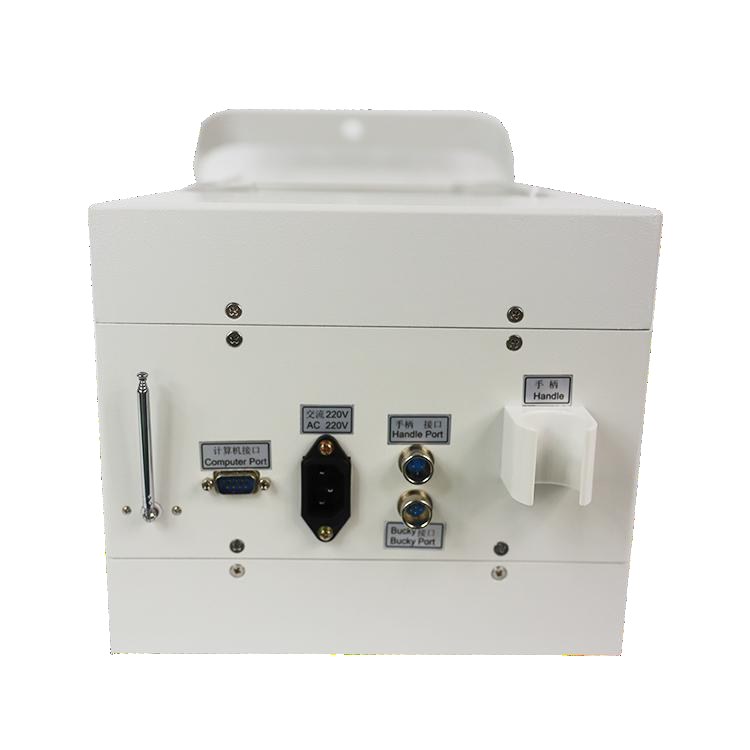

| Communication interface | RS-232 |
| Dimension | 265 × 240 × 210 mm |
| Weight | 15 kg |
| Package size | 54 × 37 × 33 cm |
| Net / gross weight | 15 kg / 22.5 kg |
- High-frequency inverter generator — stable, precise exposure at lower dose
- Human anatomy program (APR) — head, chest, abdomen, lumbar, cervical, limbs
- Pairs with Newheek flat panel detectors (wired or wireless) for digital radiography
- Touchscreen console with kV / mA / mAs programming on portable and mobile units
- Hand-switch and remote / wireless exposure control options
- Fault self-protection and self-diagnosis with filament preheating
- Factory-direct support from Shandong Newheek Imaging Equipment Co., Ltd.

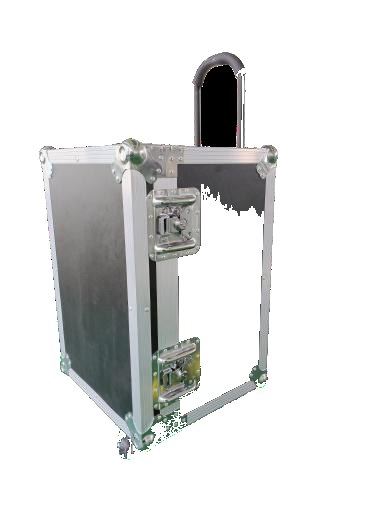

Versions: Optional trolley case (57 × 39 × 36.5 cm); mobile stands NK-BX1 (manual, SID 50–189 cm) / NK-BX2 / NK-BX3 (electric) / NK-BX5 (foldable, 11.5 kg); pairs with NK3543/NK4343 flat panel detectors (wired or wireless) to form a portable DR system.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope
Where It Works
- Hospitals, clinics and physical examination centers — routine radiography of head, chest, abdomen and limbs — 医院、诊所、体检中心常规摄片
- Ward and bedside imaging with the mobile and portable units — 病房床旁摄片
- Ambulances, disaster relief and first-aid teams — field X-ray photography — 救护车、救灾急救野外摄片
- Mobile medical examination vehicles with the vehicle-mounted DR system and LZ rack series — 体检车/医疗车车载 DR 检查
- Operating theaters and orthopedics — multi-angle positioning with the suspended DR — 手术室骨科多角度摄影
Explore the Line
Other Medical Imaging Products

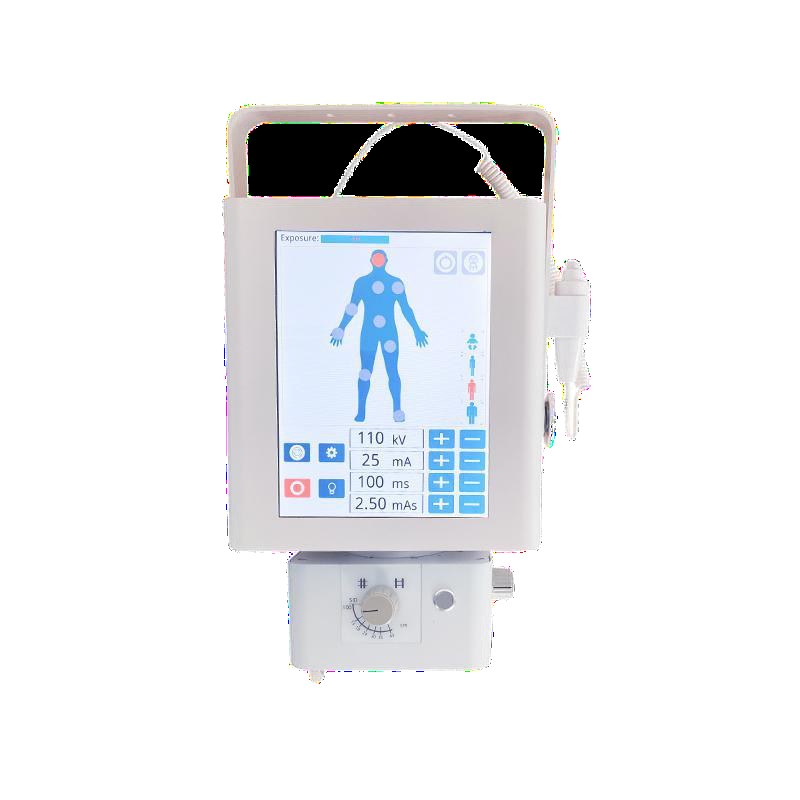

Portable X-ray Unit 5.6 kW · KWJ40–120 kV · 0.1–320 mAs · 110/220 V · 17.5 kg

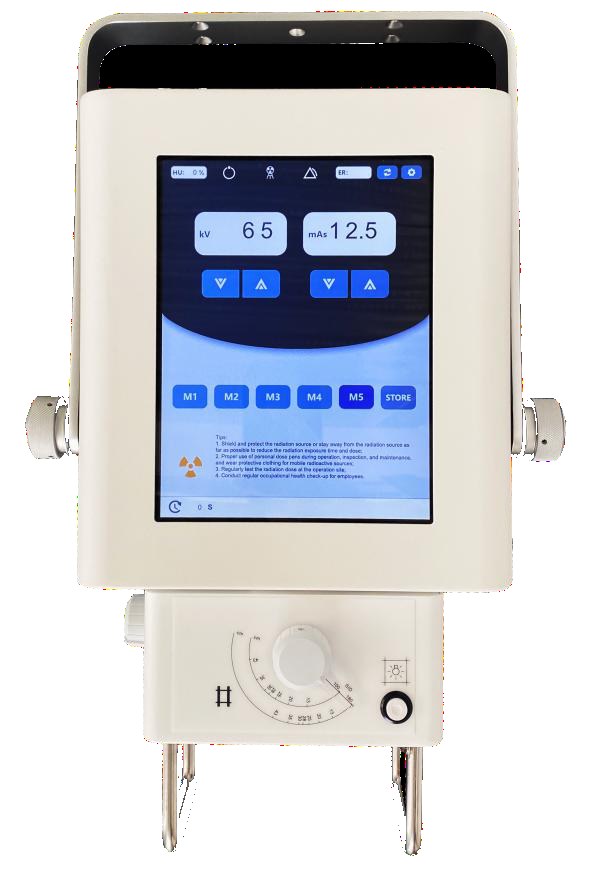

Portable X-ray Unit 5.6 kW · YR40–125 kV · 0.1–100 mAs · 4 languages · 17.5 kg
Vehicle-Mounted Digital DR50 kW generator · 40–150 kV · 17×17 in detector · lead-shielded
Vehicle Dual-Column Rack · LZLZ-1 to LZ-4 · 165 cm · electric lifting · 40×20 cm base

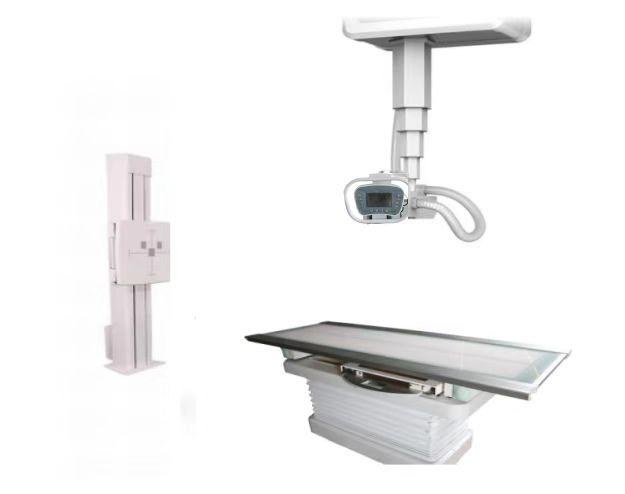

Suspended DR X-ray Machine40–150 kV · 0.1–640 mAs · six-way floating table · 17×17 FPD

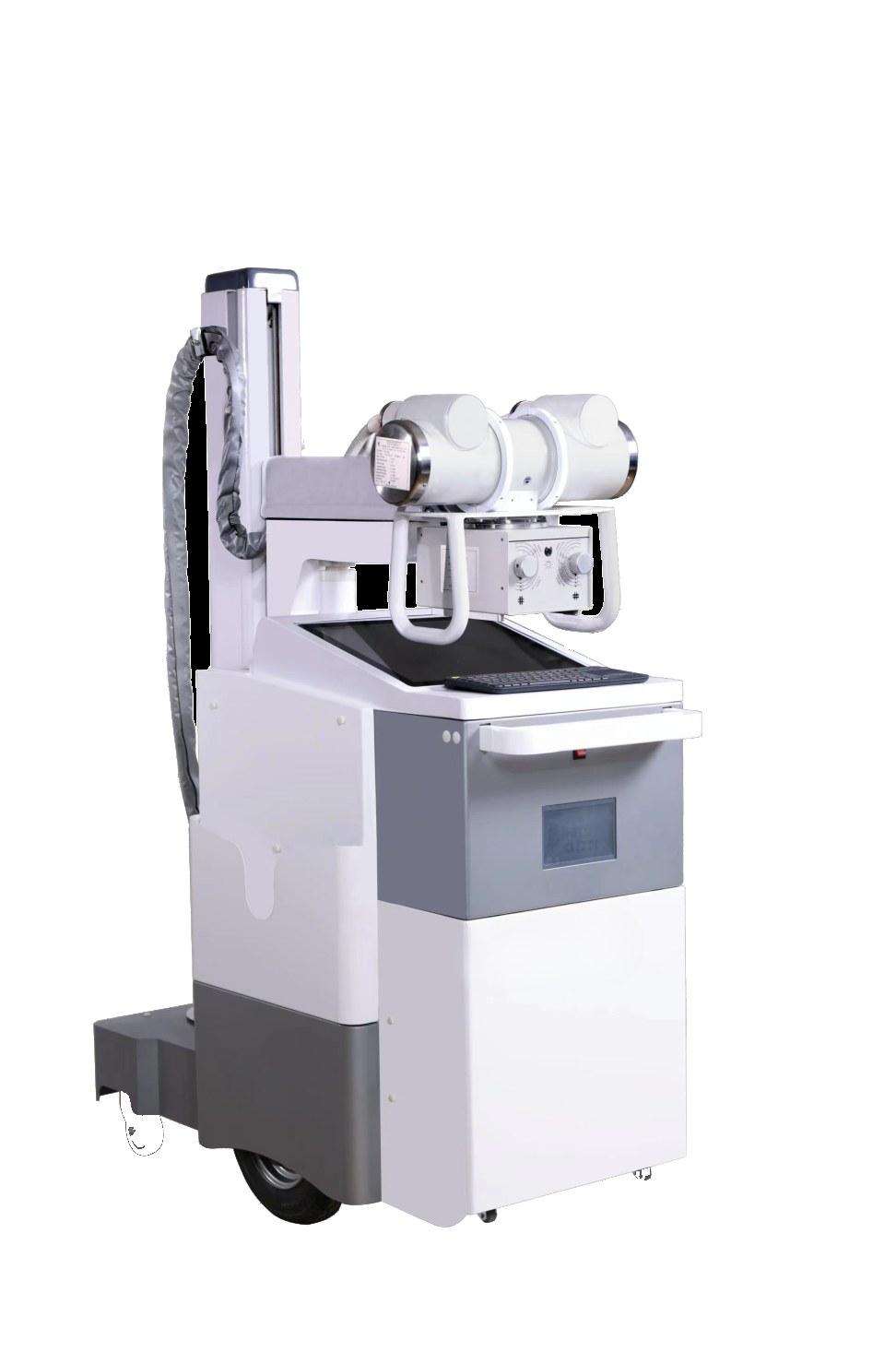

Mobile X-ray Machine 400 mA40–150 kV · max 400 mA · battery DC 54 V 13 Ah · electric assist
