Portable Medical X-ray Unit 5.6 kW (YR)

5 kW (5.6 kW max) · 40–125 kV · 0.1–100 mAs · 4 interface languages · 17.5 kg · 275 × 244 × 210 mm

The YR configuration — built for international teams. 40–125 kV with 0.1–100 mAs, a 25 mA small filament for fine-detail work, and a four-language interface (Chinese, English, Russian, Spanish). Same trolley-case portability and DR-ready platform as the whole 5 kW family.

5.6 kW max power40 – 125 kV (1 kV step)4 interface languages17.5 kg · travel-ready
Get a Quote in 24h
Product Views

Product Photos

YR version — touchscreen console with kV / mAs programming and presets
YR version — touchscreen console with kV / mAs programming and presets

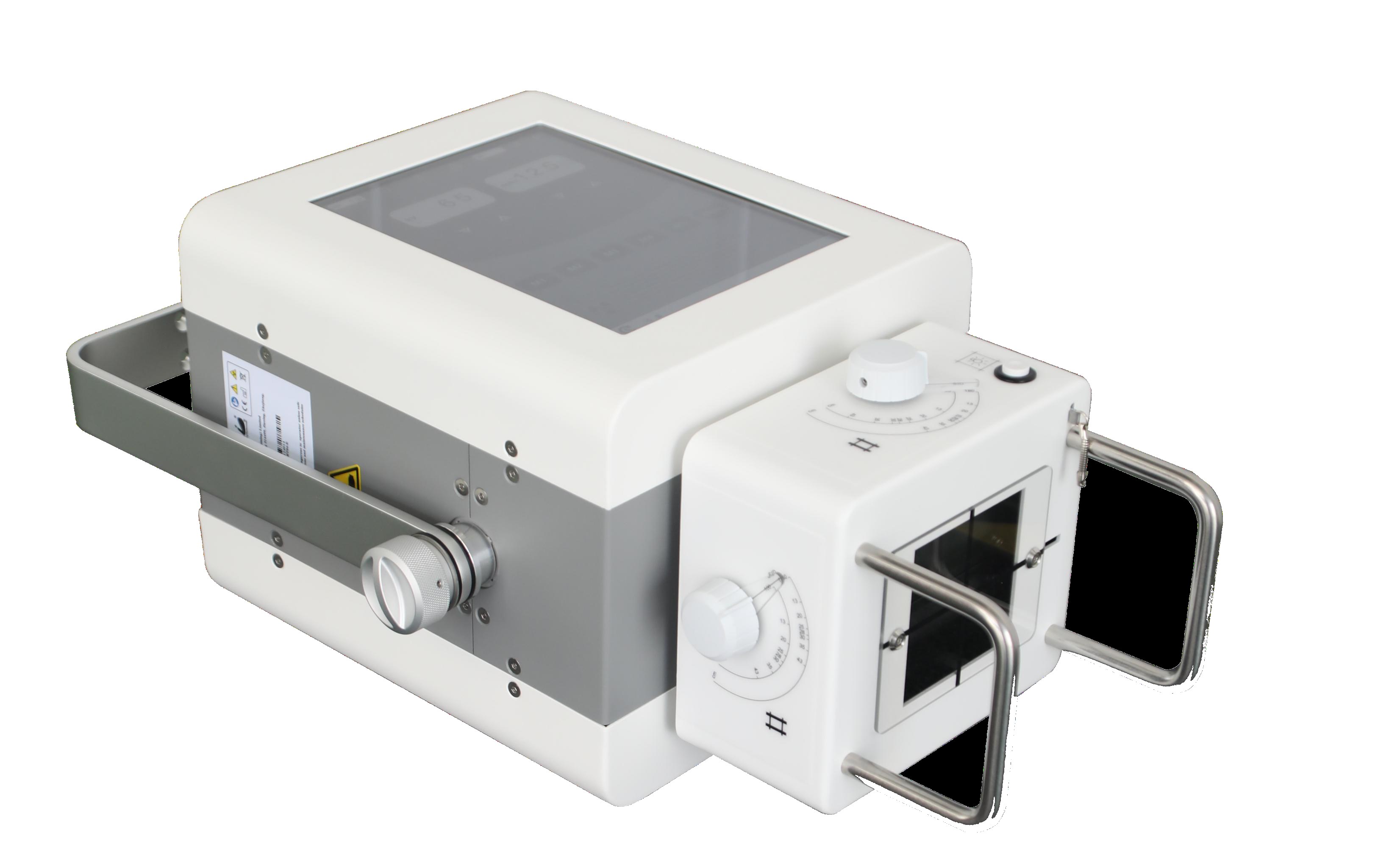

YR version — side view with carrying handle and collimator
YR version — side view with carrying handle and collimator

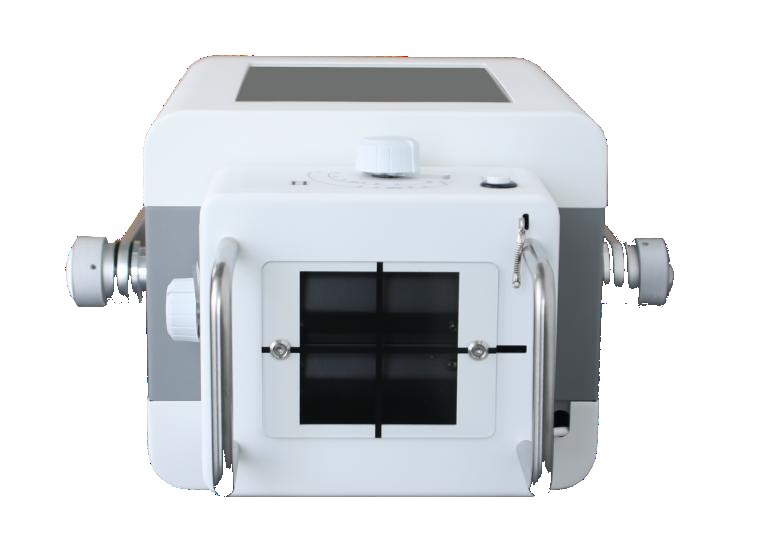

YR version — tube head with collimator and cross-hair
YR version — tube head with collimator and cross-hair
Optional trolley case for transport
Optional trolley case for transport
Specifications

Technical Parameters

Output power5 kW (maximum 5.6 kW)
Work voltage220 – 240 VAC
kV range40 – 125 kV, 1 kV step
mAs range0.1 – 100 mAs
X-ray focal spotsSmall 0.6 / large 1.8
Max tube current25 mA (small filament) / 100 mA (large filament)
Inherent filtration0.6 mmAl
Exposure controlHand switch / remote control
Interface languageChinese / English / Russian / Spanish
Dimension275 × 244 × 210 mm
Weight17.5 kg
Package size64 × 47 × 41 cm
Net / gross weight17.5 kg / 23 kg
  • High-frequency inverter generator — stable, precise exposure at lower dose
  • Human anatomy program (APR) — head, chest, abdomen, lumbar, cervical, limbs
  • Pairs with Newheek flat panel detectors (wired or wireless) for digital radiography
  • Touchscreen console with kV / mA / mAs programming on portable and mobile units
  • Hand-switch and remote / wireless exposure control options
  • Fault self-protection and self-diagnosis with filament preheating
  • Factory-direct support from Shandong Newheek Imaging Equipment Co., Ltd.
Versions: Optional trolley case (57 × 39 × 36.5 cm); mobile stands NK-BX1 / NK-BX2 / NK-BX3 / NK-BX5; pairs with NK3543/NK4343 flat panel detectors to form a portable DR system.
Specifications from the manufacturer's product datasheet (Shandong Newheek Imaging Equipment Co., Ltd.). Ask us for the CE / FDA documentation package for your market.
Application Scope

Where It Works

  • Hospitals, clinics and physical examination centers — routine radiography of head, chest, abdomen and limbs — 医院、诊所、体检中心常规摄片
  • Ward and bedside imaging with the mobile and portable units — 病房床旁摄片
  • Ambulances, disaster relief and first-aid teams — field X-ray photography — 救护车、救灾急救野外摄片
  • Mobile medical examination vehicles with the vehicle-mounted DR system and LZ rack series — 体检车/医疗车车载 DR 检查
  • Operating theaters and orthopedics — multi-angle positioning with the suspended DR — 手术室骨科多角度摄影
